A few hundred parts per million of water can freeze a regulator, corrode a pipeline or lower the heating value of natural gas. Measuring that water quickly and correctly is the job of the analyzer and, just as much, of its sample system.
Water is the impurity every gas processor fights, from dehydration units to custody transfer points. This guide explains the units, the five main sensing methods, sample system rules and a quick lb/MMscf to ppmv calculator.
What Is a Trace Moisture Analyzer?
A trace moisture analyzer is an online or portable instrument that measures very small amounts of water vapour in a gas, usually in parts per million by volume (ppmv), lb/MMscf or dew point. It is one of the most important gas analyzers in natural gas processing, transmission and industrial gas plants.
Ordinary relative humidity sensors, described in capacitive RH sensors, work well in room air but lose resolution in very dry gas. Trace levels need sensors and sample systems designed for single or double digit ppmv values.

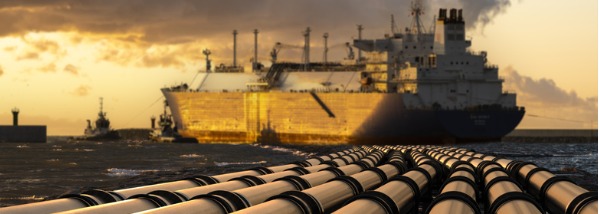

Water enters natural gas at the well and is removed in glycol or molecular sieve dehydration units. The trace moisture analyzer at the outlet confirms that the gas is dry enough before it enters the pipeline or a custody transfer station.
Why Water Matters in Natural Gas
AMETEK Process Instruments explains that water lowers the heating value of natural gas and dissolves H2S and CO2 to form corrosive acids. Under certain pressure and temperature conditions, water and methane also form solid hydrates that can block lines and force costly shutdowns.
Pipeline and Gas Journal reports that the common US tariff limit is 7 lb of water per MMscf. The same article gives a typical European limit as a dew point of minus 8 °C at 70 bar absolute, and notes that suppliers who exceed limits can be shut in.
Joule Thomson cooling across a pressure regulator can drop the gas temperature sharply. Wet gas can then form ice or hydrates right inside the regulator, even when the pipeline itself is warm.
Units Used for Trace Moisture
A trace moisture analyzer can report water in several ways, and engineers must convert between them every day. Gas volumes in lb/MMscf relate to flow units explained in MMSCFD natural gas flow rate.
| Unit | Meaning | Typical User |
|---|---|---|
| ppmv | Volume of water per million volumes of gas | Analyzer output, labs |
| lb/MMscf | Pounds of water per million standard cubic feet | US pipelines, tariffs |
| mg/Sm³ | Milligrams per standard cubic metre | European and Indian contracts |
| Dew point at pressure | Temperature where water condenses at line pressure | Hydrate and condensation checks |
The dew point depends on pressure, so a value without a stated pressure is incomplete. The same idea is explained for compressed air in dew point in instrument air.
5 Proven Trace Moisture Analyzer Methods
Porous oxide layer changes capacitance as it adsorbs water.
Coated crystal frequency drops as water is adsorbed.
Laser absorption at a water line, no contact with the gas stream.
Mirror is cooled until dew or frost forms on it.
Water absorbed in a film is electrolysed, current gives content.
Each trace moisture analyzer method has a place, and many plants combine an online analyzer with a portable chilled mirror or second technology for spot checks. The comparison below helps match the method to the service.
| Method | Strength | Watch Out For |
|---|---|---|
| Aluminium oxide | Low cost, wide range | Drift, periodic recalibration |
| QCM | Fast, sensitive | Contamination of the coating |
| TDLAS | No field calibration claimed, fast | Higher price, background gas effects |
| Chilled mirror | Direct physical reading | Hydrocarbon dew point interference |
| Electrolytic | Absolute principle | Damage from liquids and high water |
Aluminium Oxide Sensors in Practice
An aluminium oxide sensor is a tiny capacitor whose porous oxide dielectric adsorbs water in proportion to its partial pressure. The capacitance or impedance is converted to dew point using a factory calibration curve.
The Panametrics HygroPro XP datasheet gives a standard calibration from plus 10 to minus 80 °C dew point, with accuracy of plus or minus 2 °C above minus 100 °C. It is loop powered at 12 to 28 V dc with a 4 to 20 mA HART output.
The same datasheet recommends sensor recalibration every 6 to 12 months, depending on the application.
Keep a calibrated spare probe for every critical aluminium oxide point. Swapping probes takes minutes and avoids running the dehydration unit blind during recalibration.
Quartz Crystal and Laser Analyzers
A quartz crystal microbalance uses a vibrating crystal, similar to a crystal oscillator, coated with a hygroscopic film. AMETEK states that the frequency changes as water is adsorbed, with accuracy of up to 10 percent of reading at levels from tens to hundreds of ppm.
A tunable diode laser analyzer sends light at a wavelength absorbed by water and measures how much is lost along the path. AMETEK notes that the same approach can also measure CO2 and H2S, and Pipeline and Gas Journal describes TDLAS as the fastest responding trace moisture technology.
Laser analyzers suit sour and glycol carrying gas because the optics, not a sensing film, touch the sample. The absorption idea is similar to the infrared method in NDIR gas analyzers, but with a much narrower laser line.
Chilled Mirror and Electrolytic Methods
A chilled mirror hygrometer cools a polished mirror until a stable film of dew or frost forms, and an optical detector holds the mirror at that point. Its reading is a direct dew point, which is why ASTM D1142 bases gaseous fuel water content measurement on dew point observation.
In natural gas, heavier hydrocarbons can condense on the mirror before water does, so an operator must judge which film is forming. ISO 18453 then provides a correlation between water content and water dew point for natural gas.
An electrolytic analyzer passes the gas over a phosphorus pentoxide film that absorbs water, and the current needed to electrolyse it follows Faraday law. It is an absolute method, but liquid water, glycol or high moisture slugs can damage the cell.
A chilled mirror instrument measures dew point as a physical event rather than inferring it from a material property. That is why many labs keep one as a reference to check online sensors.
Sample System Design Rules
AMETEK lists clear sample system practices for any trace moisture analyzer: short sample lines, small diameters, heated lines, no dead legs and a bypass flow at the analyzer inlet. The bypass raises the flow through the line, which speeds up response.
Use electropolished stainless steel tubing, because plastic tubing lets atmospheric water diffuse in and gives false high readings. Heat the lines with heat tracing where gas could cool below its dew point.
Liquids must never reach the sensor, so good filtration is essential, as compared in strainer and filter difference. During maintenance, plug wetted ports and purge the sample system before reconnecting, using dry gas or the method in nitrogen purging.
Moisture Conversion Formula
At 60 °F and 14.696 psia, one pound mole of ideal gas occupies about 379.3 standard cubic feet. Water has a molar mass of 18.015, so one pound of water vapour occupies about 21.05 standard cubic feet.
mg/Sm³ = W × 453592 ÷ 28316.85 = W × 16.02
W = water content in lb/MMscf
Example:
W = 7 lb/MMscf
ppmv = 7 × 379.3 ÷ 18.015 = 2655.1 ÷ 18.015
ppmv = 147.4
mg/Sm³ = 7 × 16.02
mg/Sm³ = 112.1, at 60 °F reference
lb/MMscf to ppmv Calculator
Second Worked Example: Checking a Reading
Suppose the trace moisture analyzer at a dehydration outlet reads 60 ppmv. Dividing by 21.05 gives 60 ÷ 21.05 = 2.85 lb/MMscf, comfortably below the 7 lb tariff limit.
If the contract states a dew point at line pressure instead, do not use a simple ideal gas estimate. Use the ISO 18453 correlation or the analyzer software, because natural gas at high pressure behaves far from ideal.
How to Install and Commission the Analyzer
Mount the trace moisture analyzer panel close to the tap and inside a shelter or sunshade, since heat and rain affect both electronics and tubing. In hazardous areas, the analyzer must be certified as described in explosion proof vs intrinsically safe instruments.
Expect a new dry system to take hours to dry down after first exposure to air. Do not adjust anything until the trace moisture analyzer reading has been stable for a long period.
- Protects pipelines from corrosion and hydrates.
- Confirms dehydration unit performance in real time.
- Supports tariff and contract compliance.
- Gives early warning of glycol or sieve problems.
- Sample system errors can exceed sensor errors.
- Some sensors drift and need regular recalibration.
- Liquids or glycol carryover can damage sensors.
- Higher cost for laser and multichannel systems.
Commissioning and Maintenance Checklist
- Sample tap location away from low points and liquids.
- All tubing stainless steel, no plastic sections.
- Bypass flow set and confirmed on the rotameter.
- Filters clean and coalescer drains working.
- Heat tracing on where the gas can cool.
- Probe calibration certificate valid for the period.
- Alarm set at the contract limit, for example 7 lb/MMscf.
Send the trace moisture analyzer value to the DCS as a 4 to 20 mA signal with HART where available, and trend it beside the dehydration unit variables. A slow rise often shows saturated sieve beds or poor glycol regeneration before an alarm occurs.
Troubleshooting a Trace Moisture Analyzer
A reading that is slowly rising after maintenance usually means that air entered the sample system, so purge longer before blaming the process. A reading that jumps when the panel heats in the afternoon sun points to permeation or a leaking fitting.
If two technologies disagree, check the sample path of each, since they rarely see exactly the same gas. Other online instruments such as a gas chromatograph share the same sample handling lessons.
Panametrics HygroPro XP Datasheet
Aluminium Oxide Moisture Measurement Video
Trace Moisture Analyzer FAQ
It measures very small amounts of water vapour in a gas, usually in ppmv, lb/MMscf or dew point. Typical natural gas readings range from a few ppmv to a few hundred ppmv.
The value confirms that dehydration is working and that gas meets its contract. It also warns of hydrate and corrosion risk long before liquid water appears.
Pipeline and Gas Journal reports a common tariff limit of 7 lb of water per MMscf. Using the ideal gas conversion, that equals about 147 ppmv by volume.
Some contracts use different limits or a dew point instead. Always read the actual gas sales agreement before setting the alarm point on the trace moisture analyzer.
Multiply the lb/MMscf value by 379.3 and divide by 18.015, which is the same as multiplying by about 21.05. So 7 lb/MMscf becomes roughly 147.4 ppmv on the trace moisture analyzer display.
This assumes ideal gas behaviour at 60 °F and 14.696 psia. Converting to a dew point at line pressure needs a proper correlation such as ISO 18453.
Tunable diode laser analyzers suit sour gas well because only the optics meet the sample. AMETEK also notes that the same laser approach can measure CO2 and H2S in the stream.
Aluminium oxide and quartz crystal sensors can work too with good filtration. They may need more frequent checks when contaminants are present in the gas.
Water sticks to tubing walls and leaks in through fittings and plastic lines. A poor sample system can therefore add far more error than the sensor itself ever does.
AMETEK recommends short, small bore, heated lines with no dead legs and a bypass flow. These steps give a faster response and much more trustworthy readings.
Panametrics recommends recalibrating the HygroPro XP moisture sensor every 6 to 12 months, depending on the application. Dirty or wet services usually need the shorter interval of the two.
Keep a spare calibrated probe so that the point stays online during the work. Verify readings in between using a portable reference instrument on the same sample.
It cools a mirror until dew or frost forms and reads that temperature directly as the dew point. Many labs keep one as a reference for checking online sensors in the field.
In natural gas, hydrocarbons may condense on the mirror before water does. The operator must therefore judge carefully which film is actually forming on the surface.
Related Articles
- Gas Analyzers Explained
- Dew Point in Instrument Air Risks
- Humidity Sensor Capacitive RH
- Gas Chromatograph Basics for Process Analytics
- What Is MMSCFD Natural Gas Flow Rate
External References
- HygroPro XP Moisture Transmitter Datasheet, Panametrics, Baker Hughes
- Moisture Measurement in Natural Gas, AMETEK Process Instruments
- Hygrometer, Wikipedia
What We Learn Today
- A trace moisture analyzer measures ppmv water in natural gas, and the common US tariff limit of 7 lb/MMscf equals about 147 ppmv.
- Aluminium oxide, quartz crystal, TDLAS, chilled mirror and electrolytic methods each suit different gases, budgets and maintenance capabilities on site.
- Sample system design, with short heated stainless lines, filtration and bypass flow, decides accuracy as much as the sensor itself does.
