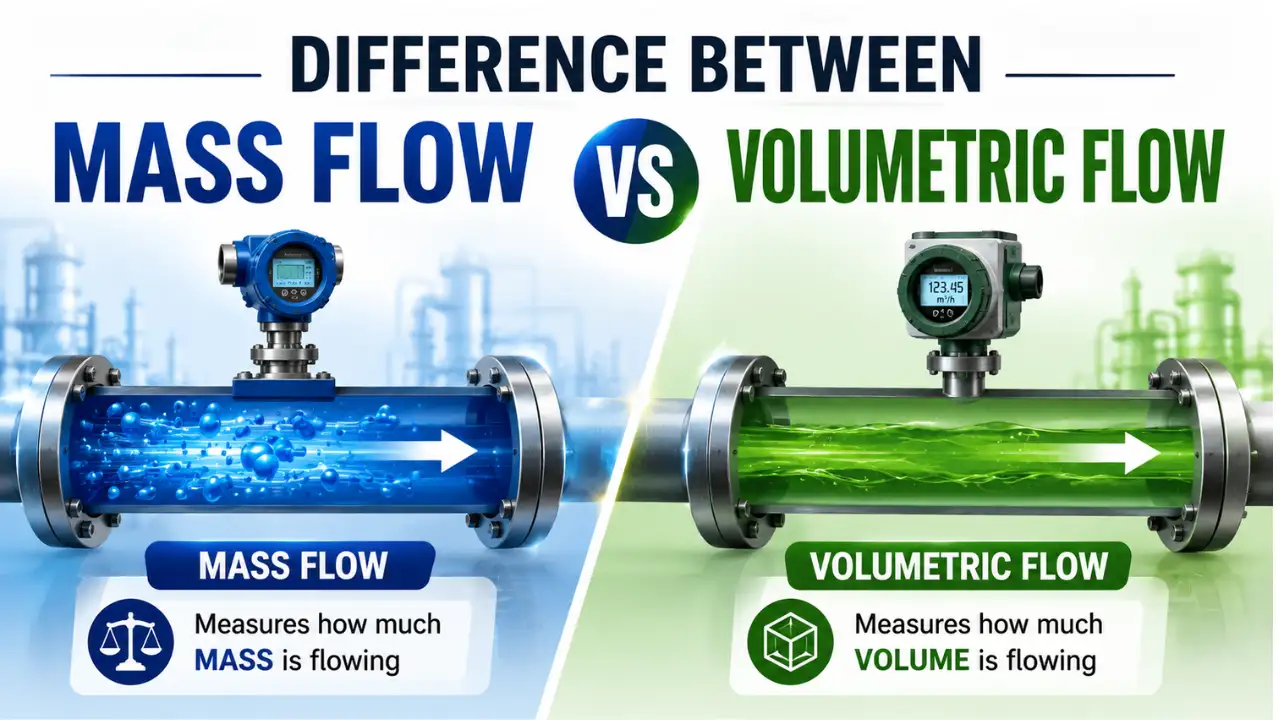

Difference Between Mass Flow and Volumetric Flow
Flow measurement is most important functions in industrial processes such as water treatment, oil & gas, chemical processing, food manufacturing, or steam systems.
But in instrumentation, flow can be measured in two completely different ways:
1. Mass Flow
2. Volumetric Flow
Many beginners get confused between these two terms because both are related to flow measurement. However, the difference between mass flow and volumetric flow is extremely important in process industries.
Understanding this concept helps engineers and technicians select the correct flow meter and improve process accuracy.
What is Flow Measurement?
Flow measurement refers to measuring the movement of liquids, gases, or steam through a pipe or system over a period of time.
Different industries measure flow for:
1. Process control
2. Billing and custody transfer
3. Chemical dosing
4. Energy calculations
5. Production monitoring
6. Safety and efficiency
The two most common flow measurement methods are mass flow and volumetric flow.
What is Mass Flow?
Mass flow measures the amount of mass passing through a point per unit time.
In simple words, it tells us how much material is flowing.
Mass flow is usually measured in:
1. kg/s
2. kg/h
3. ton/h
4. lb/min
The basic mass flow equation is:
m = m / t
Where:
ṁ = Mass flow rate
m = Mass
t = Time
Simple Example of Mass Flow
Imagine a pipeline carrying steam.
If 100 kilograms of steam pass through the pipe every hour, then the mass flow rate is:
100 kg/h
The important point is:
Mass flow measures the actual quantity of material flowing, regardless of changes in temperature or pressure.
What is Volumetric Flow?
Volumetric flow measures the amount of volume passing through a point per unit time.
It tells us how much space the fluid occupies while flowing.
Volumetric flow is commonly measured in:
1. m³/h
2. L/min
3. GPM
4. m³/s
The volumetric flow equation is:
Q = V / t
Where:
Q = Volumetric flow rate
V = Volume
t = Time
Simple Example of Volumetric Flow
If a pipe carries 10 cubic meters of water every hour, the volumetric flow rate is: 10 m³/h
Unlike mass flow, volumetric flow depends heavily on density, temperature, and pressure changes.
The Main Difference Between Mass Flow and Volumetric Flow
The biggest difference is what they actually measure.
Mass flow measures:
How much mass is flowing
Volumetric flow measures:
How much volume is flowing
This may sound similar, but in industrial processes, the difference becomes very important.
Why Density Matters
Density is important to understanding the difference between these two flow types.
For gases and steam, density changes significantly with:
1. Temperature
2. Pressure
When density changes:
1. Volumetric-flow changes
2. Mass flow remains constant
For example, compressed air occupies less volume under high pressure and more volume under low pressure.
However, the actual mass of air remains the same.
This is why mass flow measurement is preferred in many gas and steam applications.
Relationship Between Mass-Flow and Volumetric-Flow
Mass flow and volumetric flow are related through density.
The relationship is:
m˙= ρQ
Where:
ṁ = Mass flow rate
ρ = Density
Q = Volumetric flow rate
This equation shows that mass flow equals density multiplied by volumetric flow.
Common Mass Flow Measurement Technologies
Several flow meters are used for mass flow measurement.
1. Coriolis Mass Flow Meter
Coriolis flow meters directly measure mass flow using tube vibration principles.
Advantages:
1. Very high accuracy
2. Direct mass measurement
3. Density measurement capability
4. Excellent for custody transfer
These are widely used in oil & gas and chemical industries.
2. Thermal Mass Flow Meter
Thermal mass flow meters measure heat transfer caused by flowing gas.
They are commonly used for:
1. Compressed air
2. Natural gas
3. Biogas
4. Air monitoring systems
3. Differential Pressure with Density Compensation
Some systems calculate mass flow using differential pressure flow meters combined with pressure and temperature compensation.
Common Volumetric-Flow Measurement Technologies
1. Electromagnetic Flow Meter
Magnetic flow meters are widely used for conductive liquids like water and wastewater.
Advantages:
1. No moving parts
2. Good accuracy
3. Low pressure drop
2. Turbine Flow Meter
Turbine flow meters measure flow based on rotor speed.
These are commonly used for liquids and fuels.
3. Rotameter
Rotameters are simple and economical volumetric flow meters widely used in industries.
4. Positive Displacement Flow Meter
These PD Flow meters measure fixed fluid volumes repeatedly passing through the meter.
Where is Mass Flow Used?
Mass flow measurement is preferred when the actual quantity of material is important.
Typical applications include:
1. Steam measurement
2. Fuel consumption
3. Chemical dosing
4. Custody transfer
5. Gas flow measurement
6. Energy calculations
In steam systems, energy depends on mass, not volume.
That is why mass flow measurement is critical.
Where is Volumetric-Flow Used?
Volumetric-flow is commonly used when measuring liquid movement where density changes are minimal.
Applications include:
1. Water distribution
2. Wastewater treatment
3. Irrigation systems
4. General liquid transfer
5. Low-cost industrial applications
For water applications, volumetric flow measurement is usually sufficient because water density changes very little under normal conditions.
Which One is Better?
Neither is universally better.
The correct choice depends on the application.
Mass flow is better when:
1. Density changes significantly
2. High accuracy is required
3. Gas or steam is measured
4. Actual material quantity matters
Volumetric flow is better when:
1. Conditions remain stable
2. Water or liquids are measured
3. Lower cost solutions are preferred
4. Simple monitoring is sufficient
Common Mistakes in Flow Measurement
One common mistake is selecting a flow meter without considering process conditions.
For example:
1. Using volumetric flow for steam without compensation can create large errors.
2. Ignoring density variations in gas applications may affect accuracy.
Instrumentation engineers must understand:
1. Process conditions
2. Fluid properties
3. Pressure and temperature effects
4. Required measurement accuracy
before selecting a flow meter.
FAQs About Mass Flow and Volumetric Flow
1. What is the main difference between mass flow and volumetric flow?
Mass flow measures the amount of mass flowing through a pipe, while volumetric flow measures the volume occupied by the fluid.
2. Which is more accurate: mass flow or volumetric flow?
Mass flow is generally more accurate because it is less affected by changes in temperature, pressure, and density.
3. Why is mass flow preferred for gases and steam?
Because gases and steam change density with temperature and pressure. Mass flow provides more reliable measurement under changing conditions.
4. Which flow meter directly measures mass flow?
Coriolis flow meters directly measure mass flow and are widely used in industrial applications.
5. Is electromagnetic flow measurement mass flow or volumetric flow?
Electromagnetic flow meters measure volumetric flow.
What we learn today?
Mass flow and volumetric flow are both essential concepts in industrial instrumentation.
Mass flow measures the actual quantity of material flowing, while volumetric flow measures the space occupied by the fluid.
Understanding the difference is extremely important for selecting the correct flow measurement technology and ensuring accurate process control.
In simple words:
Mass flow tells you “how much material” is flowing.
Volumetric flow tells you “how much space” the fluid occupies.
Both measurements are valuable, but choosing the right one depends completely on the process application.
