Top 10 Key Differences Between Open Loop and Closed Loop Control Systems

Share:

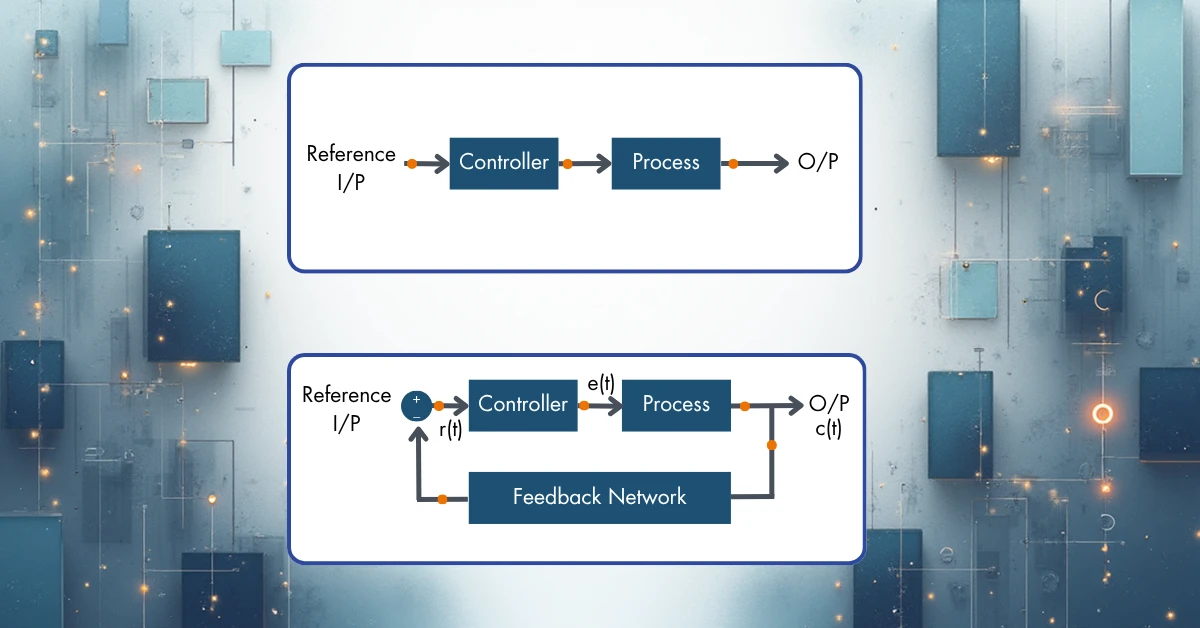

Open Loop and Closed Loop Control System

In industrial automation and instrumentation, understanding how a control system works is very important.

Two of the most common types are the Open Loop and Closed Loop Control System.

These systems maintain process variables such as pressure, flow, temperature, or level within desired limits.

An open loop system works without feedback, while a closed loop system uses feedback to correct errors automatically.

This article explains how both systems work, their differences, advantages in process industries.

Quick Answer

Difference Between Open Loop and Closed Loop Control System

The difference between open loop and closed loop control system is feedback. An open loop system acts on a fixed input and never checks the output, for example a toaster or a washing machine timer. A closed loop system measures the output with a sensor, compares it with the setpoint and corrects the error, for example an AC thermostat or a PID level loop.

PointOpen loopClosed loop
FeedbackNone, output is not measuredSensor measures output and corrects error
AccuracyLow, depends on calibrationHigh, error is corrected continuously
DisturbancesNot correctedCorrected automatically
StabilityAlways stableCan oscillate if badly tuned
Cost and designSimple and cheapMore parts, needs tuning
ExamplesToaster, washing machine timer, traffic lightAC thermostat, PID level loop, cruise control

What is a Control System?

A control system is a setup of different devices that work together to control or manage how another system behaves.

it is a system that controls other systems to get a desired result. This is done through something called a control loop, which keeps a process variable like temperature, pressure, flow, or level at the correct value.

Now a days the use of automation is growing fast and it depends on control systems.

Today, control systems are part of almost everything around us.

In daily life, examples of control systems include an air conditioner, refrigerator, automatic iron, and cruise control in cars.

In industries, control systems are used in manufacturing and quality control, power plants, robotics, transportation systems, defense equipment and even space technology.

These systems help make operations faster, safer and more reliable.

Features of a Control System

The most important feature of a control system is that there should be a clear relationship between its input and output.

This means we should be able to describe how the output changes when the input changes.

If this relationship can be expressed using a simple straight-line (linear) equation, the system is called a linear control system.

When the input and output are connected in a more complex way and not following a straight-line relationship then the system is known as a non-linear control system.

In such systems, small changes in input may not always produce proportional changes in output.

What are requirements of a Good Control System?

A good control system should meet certain requirements to perform efficiently and reliably.

Let’s look at the main ones:


1. Accuracy

Accuracy means how close the system’s output is to the desired value. It shows how much error is present when the system is working normally.

Accuracy can be improved by using feedback. In fact, adding an error detector helps the system compare the actual output with the desired output and make corrections automatically.

2. Sensitivity

A control system is affected by changes in temperature, load, or other conditions. Sensitivity shows how much these changes affect the system’s performance.

A good control system should be less sensitive to external disturbances but highly sensitive to input signals.

3. Noise

Noise is any unwanted or disturbing signal that enters the system. It can cause errors or instability in the output.

A good control system should be able to reduce the effect of noise to maintain smooth and accurate operation.

4. Stability

Stability is one of the most important features of a control system. A system is said to be stable if a limited (finite) input produces a limited output, and when the input is zero, the output also becomes zero.

An unstable system may give unpredictable or oscillating outputs, which can be dangerous in industrial applications.

5. Bandwidth

Bandwidth is the range of frequencies over which a control system can operate effectively. A wider bandwidth allows the system to respond to a larger variety of signals.

Therefore, a good control system should have a wide bandwidth for better frequency response.

6. Speed

Speed refers to how quickly a control system can reach its steady-state (stable) output.

A good control system should have high speed and a short transient period, meaning it should settle down quickly after any change in input.

7. Oscillation

Oscillations are small repetitive changes or swings in the system’s output.

A few small oscillations are acceptable, but too many or increasing oscillations indicate instability.

In a good control system, oscillations should be small and consistent.

What are different Types of Control Systems

flowchart of automatic room temperature control using a sensor, set point and heater feedback
Diagram by Instrumentation Blog showing automatic room temperature control: the sensor measures, the heater turns on below set point and off at the desired value.

There are many kinds of control systems, but all of them are designed to control the output of a process. Examples include systems that control position, speed, acceleration, temperature, pressure, voltage, and current.

Let us understand this concept better with a simple example of a room temperature controller.


Example: Room Temperature Control

Imagine you have a room heater. When the heater’s power switch is turned on, the temperature of the room keeps rising. When the desired temperature is reached, you turn off the heater. After some time, as the room cools down, you manually turn on the heater again to warm up the room.

This way, you control the room temperature by turning the heater on and off yourself.

This is an example of a manual control system.


Improved Manual System

Now, if we add a timer switch that automatically turns the heater on and off at regular intervals, the temperature can be maintained more easily.

This is still not fully automatic, but it is a semi-automatic control system.


Automatic Temperature Control

A more advanced system uses a temperature sensor that continuously measures the room’s temperature.

If the temperature drops below the set point, the heater turns on automatically. When the room reaches the desired temperature, the heater turns off.

Here, the system measures the difference (error) between the actual temperature and the desired temperature, and adjusts the heating accordingly.

So, there are two types of control systems
1) Open Loop Control System
2) Closed Loop Control System

In instrumentation, both open loop and closed loop control systems are used to maintain variables like temperature, pressure, or flow at the desired value.

What is Open Loop Control System

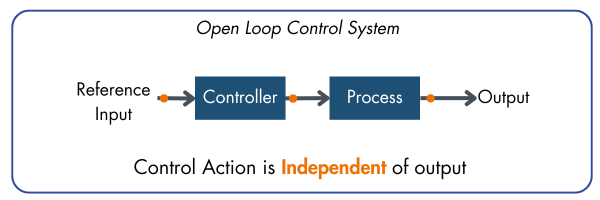

Open Loop and Closed Loop Control System

A control system in which the control action does not depend on the output is called an Open-Loop Control System. In simple words, the system works only based on the input given to it, without checking whether the desired result has been achieved or not.

A manual control system like switching a room heater on or off by yourself is also an example of an open-loop system.

In an open-loop system, the output does not influence the controller’s action. The system keeps working as per the input command, even if the output changes due to external conditions.

Advantages and Disadvantages of Open Loop

AdvantagesDisadvantages
Simple in design and constructionLess accurate due to no feedback
Low cost and economicalUnreliable under changing conditions
Easy to maintain and operateCannot correct errors automatically
Generally stable in operationPerformance affected by external disturbances
Suitable where output is hard to measureOutput may not match the desired value

What is a Closed Loop Control System?

open loop and closed loop control system block diagram with heater, process and feedback
Diagram by Instrumentation Blog comparing open loop and closed loop temperature control: setpoint, controller, heater and tank, with a transmitter feeding back to the error detector.

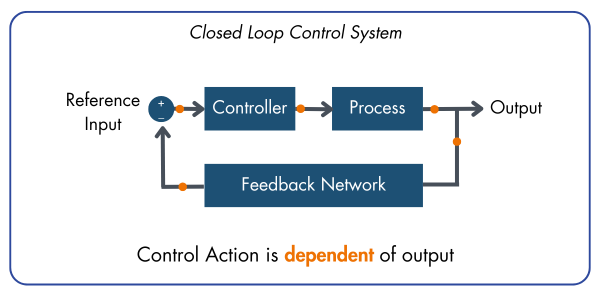

Closed Loop Control System

A closed-loop control system is one in which the output affects the input in such a way that the system automatically adjusts itself to achieve the desired result. In simple terms, the system checks its own output and makes corrections whenever needed.

An open-loop system can be turned into a closed-loop system by adding a feedback mechanism. This feedback monitors the output and automatically makes necessary adjustments if there are any changes or disturbances in the process.

Because of this self-correcting ability, a closed-loop control system is also known as an automatic control system.

Advantages and Disadvantages of Closed Loop

AdvantagesDisadvantages
High accuracy due to feedback correctionMore expensive than open-loop systems
Performs well even with non-linear processesDesign is more complex
Wide bandwidth and faster responseRequires frequent maintenance
Enables full automationMay cause oscillations due to feedback
Stability can be adjusted through sensitivity controlNeeds skilled supervision
Less affected by noise and disturbancesMore components increase failure risk

Comparision of Open Loop vs Closed Loop

comparison chart of open loop and closed loop systems by feedback, accuracy, stability and cost
Diagram by Instrumentation Blog comparing open loop and closed loop control systems on feedback, accuracy, disturbances, stability, cost, bandwidth and examples.
Open Loop and Closed Loop Control System animation
Open loop and closed loop control system animation. Numbered parts:
  1. Setpoint (60 °C)
  2. Controller (PID in the closed loop)
  3. Heater as the final control element
  4. Process tank with cold inflow disturbance
  5. Temperature transmitter (sensor)
  6. Feedback path to the controller
Open-Loop Control SystemClosed-Loop Control System
Feedback element is absent.Feedback element is present.
No error detector is used.Includes an error detector to correct output.
Generally stable in operation.May become unstable due to feedback.
Simple and easy to construct.Complex in design and construction.
Economical and low cost.Costly due to additional components.
Has a small bandwidth.Has a large bandwidth.
Less accurate, no feedback correction.Highly accurate due to feedback.
Needs less maintenance.Needs more maintenance.
Unreliable, affected by external factors.Reliable, automatically corrects errors.
Examples: Hand dryer, tea maker.Examples: Servo voltage stabilizer, automatic temperature control system.

Open Loop and Closed Loop Control System: Common Questions

What is open loop and closed loop control system?

An open loop control system gives an output based only on the input and a preset time or setting, with no measurement of the result. A closed loop control system feeds the measured output back to the controller, which keeps adjusting until the output matches the setpoint.

What is the difference between open loop and closed loop control system with example?

A clothes dryer on a timer is open loop: it runs 40 minutes whether the clothes are dry or not. A dryer with a moisture sensor is closed loop: it stops when the sensor says the clothes are dry. The sensor and the correction are the difference.

What are the benefits and drawbacks of open and closed loop control systems?

Open loop systems are simple, cheap and always stable, but they cannot correct for load changes or disturbances. Closed loop systems are accurate and reject disturbances, but they cost more, need a sensor and must be tuned to avoid oscillation.

Which is more stable, open loop or closed loop?

An open loop system is inherently stable because there is no feedback path. A closed loop system can become unstable or hunt if the controller gain is too high, which is why PID tuning matters.

What are examples of open loop and closed loop control systems?

Open loop: electric toaster, traffic light timer, manual tap, stepper motor without encoder. Closed loop: room AC with thermostat, cruise control in a car, tank level control with a transmitter and valve, servo motor with encoder.

10 Open Loop Control System Examples and Their Closed Loop Versions

Most open loop control system examples become closed loop once a sensor and feedback are added. This table shows the difference between open loop and closed loop system versions of the same everyday and plant equipment.

Open loop exampleWhy it is open loopClosed loop version
Electric toasterTimer only, bread colour not measuredToaster with browning sensor
Washing machine timerRuns for fixed time, cleanliness not checkedMachine with turbidity sensor
Traffic light with fixed timerIgnores actual trafficTraffic light with vehicle detectors
Electric fan regulatorSpeed set by knob, room temperature ignoredFan with temperature control
Immersion water heaterHeats until switched offGeyser with thermostat
Manual control valveFixed opening, flow not measuredFlow control loop with PID
Stepper motor driveSteps counted, position not measuredServo motor with encoder
Rice cooker timerTime based cookingCooker with temperature sensor
Irrigation sprinkler timerIgnores soil moistureSprinkler with soil moisture sensor
Cloth dryer with timerFixed drying timeDryer with humidity sensor

In short, the open loop vs closed loop system choice depends on whether you can tolerate output error. Where disturbances change the result, use closed loop control.

What we learn today?

Both open loop and closed loop control systems are important in automation and instrumentation.

The difference between open loop and closed loop control systems is mainly based on the use of feedback.

While open-loop systems are simple and cost-effective, closed-loop systems offer higher accuracy and self-correction using feedback. Choosing the right type depends on how much control and precision your process requires

I hope you like above blog. There is no cost associated in sharing the article in your social media. Thanks for reading!! Happy Learning!!
