Guided Wave Radar vs Non-Contact Radar: 6 Key Differences for Level Measurement Selection
Same underlying physics, same time-of-flight math, completely different engineering trade-offs. This guide compares guided wave radar vs non-contact radar with real dielectric numbers, range limits, a video, and a full do's and don'ts selection guide.
Real Dielectric Constant Data
Range and Installation Limits
Foam and Vapor Performance
Selection Do's and Don'ts

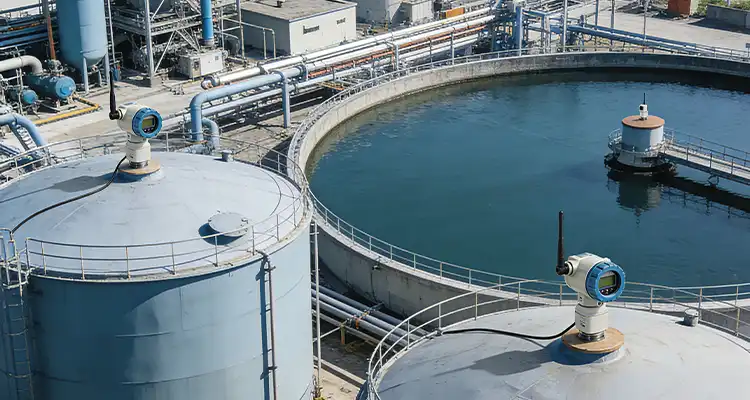

Guided Wave Radar vs Non-Contact Radar: The Core Difference
Both technologies fire a microwave pulse and time how long it takes to come back. That's where the similarity ends. Non-contact radar sends its pulse through open air, straight down from an antenna at the top of the tank, and waits for an echo off the liquid surface. Guided wave radar sends the same kind of pulse down a probe, a rod or cable that actually touches the material. One measures through the air. The other measures along a wire.
That single design choice cascades into everything else. Signal loss, dielectric sensitivity, foam performance, installation limits, fouling risk, even how far each one can reach. Neither technology is simply better. They fail in opposite directions, and picking the right one means knowing which failure mode your tank is more likely to throw at you.
Advertisement
Advertisement
6 Key Differences Between Guided Wave Radar and Non-Contact Radar
1
The signal path is fundamentally differentNon-contact radar disperses through open air and loses energy as it spreads. Guided wave radar stays confined to the probe, so almost none of the signal energy escapes before it hits the material.
2
Low dielectric materials favor the guided probeGuided wave radar can reliably measure media down to a dielectric constant of about 1.4. Non-contact radar struggles below roughly 2 to 3, since a weak reflection off the surface easily gets buried by noise, vapor, or internal echoes.
3
Foam and heavy vapor hurt non-contact radar moreAn open-air beam has to punch through whatever sits above the liquid, foam, steam, dust, all of it. A guided probe barely notices, since the signal never leaves the immediate vicinity of the probe surface.
4
Range and installation limits run in opposite directionsNon-contact radar can reach up to 150 meters in the right conditions, with no probe to size or support. Guided wave radar tops out around 30 to 50 meters, limited by the physical waveguide, and needs enough headroom above the tank to insert and remove the probe.
5
Fouling risk sits on opposite sides of the equationA guided probe sitting in the material can accumulate buildup, crystallization, or coating over time. A non-contact antenna touches nothing, so it has no such risk, but it does need a clear, unobstructed line of sight to the surface.
6
Only one of them handles interface measurement wellGuided wave radar can detect the boundary between two liquids of different dielectric constant, oil sitting on water for example, because the probe keeps producing reflections all the way down. Non-contact radar generally cannot do this reliably.
Watch: Guided Wave Radar vs Non-Contact Radar Level Measurement Explained
This video walks through both technologies side by side with clear visual comparisons.
Video: "Radar Level Measurement Explained, Guided Wave Radar Vs Non Contact (Pulse)", embedded via YouTube
Dielectric Constant: The Number That Decides Which Radar Actually Works
Every radar reflection depends on how sharply the dielectric constant changes at the surface being measured. Air sits at 1.0. A bigger jump from that baseline means a stronger, cleaner reflection for either technology.
| Material | Approximate Dielectric Constant |
|---|---|
| Air | 1.0 |
| Light hydrocarbons, gasoline | ~2.0 |
| Glycerin | ~42 |
| Water | ~80 |
Guided wave radar keeps producing a usable, if weaker, reflection well below what non-contact radar can reliably handle, since the probe concentrates the signal energy rather than letting it spread and dilute through open air.
Dielectric constant is rarely a hard pass or fail line in practice. It mostly decides how much margin you have. A comfortable margin means a stable, repeatable reading. A thin margin means the same measurement working today and drifting unreliable the moment vapor or foam adds a little extra noise.
Dielectric Constant Sets the Margin, Not Just a Yes or No
Advertisement
Advertisement
Range, Frequency, and Installation Comparison
| Parameter | Guided Wave Radar | Non-Contact Radar |
|---|---|---|
| Typical maximum range | 30 to 50 m (probe-limited) | Up to 150 m (some high-end units to 120 m on silos) |
| Typical frequency | 1 to 2 GHz | 6, 26, or 80 GHz depending on model |
| Minimum dielectric constant | ~1.4 | ~2 to 3 for reliable operation |
| Contact with process material | Yes, via probe | No |
| Best suited tank size | Small to mid-size, narrow or obstructed vessels | Large, open, unobstructed vessels |
| Interface measurement | Yes, a core strength | Generally not capable |
Do's and Don'ts: Choosing Between Guided Wave Radar and Non-Contact Radar
✔ Do
- Choose guided wave radar for narrow, obstructed, or foam-prone vessels where a stable signal path matters more than reach.
- Choose non-contact radar for large, open, clean tanks where probe length and mechanical wear would become a real problem.
- Check the actual dielectric constant of your process material against both technologies' realistic minimums before committing.
- Use guided wave radar specifically when interface measurement, such as oil on water, is a real requirement.
- Confirm headroom above the tank for probe insertion and removal before specifying guided wave radar.
✘ Don't
- Don't install a guided wave probe in a vessel with an aggressive mechanical agitator without checking for probe collision risk first.
- Don't specify non-contact radar for heavy, persistent foam applications without a real performance check on that specific foam type.
- Don't assume a guided wave probe rated for one process automatically transfers to a different tank, the waveguide length is application specific.
- Don't ignore fouling risk on sticky, crystallizing, or polymerizing media when specifying a contact-based probe.
- Don't expect non-contact radar to give a reliable interface reading between two liquids, that's a guided wave radar strength, not theirs.
Advertisement
Advertisement
Quick FAQs: Guided Wave Radar vs Non-Contact Radar
Which technology handles a tank with an internal agitator better?
It depends on what specifically threatens the measurement. Non-contact radar avoids any risk of the mixer damaging a probe, but modern units with smart echo tracking can also distinguish agitator blades from the true product surface. A guided wave probe risks physical collision with an aggressive agitator unless the installation is carefully checked first.
Why can't non-contact radar measure interface level reliably?
An open-air beam loses too much energy reaching a buried interface between two liquids, and any remaining signal is easily confused with noise. A guided probe keeps producing usable reflections at each dielectric boundary along its length, which is exactly why guided wave radar dominates interface applications.
Is guided wave radar always more accurate than non-contact radar?
Not universally. In large, clean, unobstructed tanks with a decent dielectric constant, non-contact radar performs excellently and avoids probe related risks entirely. Guided wave radar's advantage shows up specifically in difficult conditions, low dielectric media, foam, vapor, or narrow obstructed vessels.
Can a guided wave radar probe be reused if I move it to a different tank?
Generally no. The waveguide length is sized to the specific measurement span of the original application, so a probe built for one tank rarely fits another without re-engineering, unlike non-contact radar, which mounts independently of measurement range.
Why does frequency, like 80 GHz, matter for non-contact radar selection?
Higher frequency produces a narrower beam angle, which helps in small or narrow vessels by avoiding reflections off internal structures. Lower frequency units spread wider and tolerate more dust, but are less precise in tight, obstructed installations.
Related articles on this site
External References
- Kobold: Guide to Radar, Guided Wave Radar and Ultrasonic Level Measurement
- Control Global: Radar Gauge Considerations
- Just Measure It: Guided Wave Radar vs Non-Contact Radar Level Measurement
Advertisement
Advertisement
What we learn today
- Guided wave radar and non-contact radar share the same time-of-flight physics, but a confined probe versus an open-air beam sends their strengths in opposite directions.
- Guided wave radar wins on low dielectric media, foam, vapor, and interface measurement. Non-contact radar wins on range, large clean vessels, and avoiding any probe fouling risk.
- Dielectric constant is best treated as a margin, not a strict pass or fail line, since thin margins tend to fail exactly when conditions get difficult.
- Neither technology is a universal answer. The right choice depends on tank geometry, process material, and which failure mode your application is actually exposed to.
