RS232 vs RS485: Complete Comparison for Industrial Instrumentation and Automation
A complete plain-English guide to RS232 and RS485 serial communication standards: how each one works electrically, why RS485 handles noise better, the full specification comparison table, SVG wiring diagrams for both, DB-9 connector pinout, RS485 two-wire vs four-wire, and a practical selection guide for every industrial application.
Every instrumentation engineer eventually faces the same question on a new project: RS232 or RS485? The answer determines how far the signal will travel reliably, how many devices you can connect, how well the system handles electrical noise from nearby drives and motors, and whether you need a converter at the panel end. Getting this wrong means intermittent communication faults that are expensive and time-consuming to diagnose in the field.
RS232 and RS485 are both serial communication standards published by the EIA (Electronic Industries Alliance) and TIA (Telecommunications Industry Association). Both carry data bit by bit over a wire. But they solve the problem of serial communication in fundamentally different ways. RS232 uses a single-ended voltage referenced to ground, while RS485 uses a differential pair where the signal is the voltage difference between two wires. This difference in electrical approach creates dramatically different performance in cable length, noise immunity and the number of devices supported.
This article explains both standards completely: the physics of why they work the way they do, a full specification comparison table, clean SVG wiring diagrams, the DB-9 connector pinout for RS232, RS485 two-wire versus four-wire configurations, and a practical selection guide. For context on how RS485 is used in Modbus instrument networks, see our guide on Modbus protocol: RTU vs TCP explained.
What RS485 is: differential signalling, why it rejects noise, multi-drop bus
The physics of why differential signalling cancels common-mode noise
Complete specification comparison: distance, speed, devices, voltage, duplex mode
SVG wiring diagram: RS232 point-to-point null-modem connection
SVG wiring diagram: RS485 multi-drop bus with termination resistors
DB-9 connector pinout: all 9 pins labelled with function
RS485 two-wire (half duplex) vs four-wire (full duplex) configurations
Practical selection guide: which standard to choose for your application
Common wiring and installation mistakes with RS232 and RS485
RS232: How Single-Ended Signalling Works
RS232 was first published in 1960 and was the standard serial port on personal computers for decades. It is still found on PLCs, SCADA computers, barcode readers, weighing scales, older analysers and many industrial instruments that need simple point-to-point communication.
RS232 uses single-ended signalling: the signal voltage on the data wire is measured relative to a shared ground wire. A voltage below -3 V on the TX wire means a logic 1 (called a MARK). A voltage above +3 V means a logic 0 (called a SPACE). The transmitter typically drives the line to plus or minus 5 to 15 V. The receiver detects the state based on this voltage relative to the common ground.
Logic 1 (MARK): TX line below -3 V (typically -5 V to -15 V)
Logic 0 (SPACE): TX line above +3 V (typically +5 V to +15 V)
Idle line: held at MARK level (negative voltage)
Key limitation: Because the signal is measured against a shared ground wire, any noise on that ground wire (from ground loops, nearby motors or poor earthing) adds directly to the signal measurement and can corrupt data. This is the fundamental reason RS232 is not suitable for electrically noisy industrial environments.
Figure 1: RS232 null-modem wiring. TX and RX are crossed so each device receives the other's transmission. The data voltage is measured relative to the shared GND wire. Any noise on the ground (ground loops, nearby motor earthing currents) corrupts the measurement. This limits RS232 to short, clean environments.
RS485: How Differential Signalling Rejects Noise
RS485 was designed specifically for industrial multi-device networks where electrical noise is present and cable runs are long. Instead of measuring signal voltage against a ground reference, RS485 uses two wires labelled A and B (sometimes DATA+ and DATA-) and measures the voltage difference between them. This is called differential signalling, and it is the key to RS485's superior noise immunity.
When the transmitter sends a logic 1, wire A is driven positive and wire B is driven negative. The receiver detects that A minus B is positive: logic 1. When sending a logic 0, A goes negative and B goes positive. The receiver calculates A minus B is negative: logic 0. The receiver cares only about the difference between A and B, not the absolute voltage of either wire relative to ground.
Figure 2: RS485 multi-drop bus. All devices share the A and B pair. The master addresses each device by number. Termination resistors (120 ohms) at both cable ends absorb signal reflections. Noise coupling onto the cable affects both A and B equally and is cancelled when the receiver subtracts A minus B.
RS232 vs RS485: Complete Specification Comparison
| Parameter | RS232 | RS485 |
|---|---|---|
| Signalling type | Single-ended (voltage measured vs shared GND) | Differential (voltage between A and B wires) |
| Maximum cable length | 15 m (50 ft) at rated speed | 1200 m (4000 ft) at 100 kbps. 15 m at 10 Mbps. |
| Maximum data rate | Up to 1 Mbps at 15 m. Typically used at 9600 to 115200 bps. | Up to 10 Mbps at short range. 100 kbps at 1200 m. |
| Number of devices | 2 only (one transmitter, one receiver) | Up to 32 unit loads per segment. Up to 256 with low-impedance receivers. |
| Network topology | Point-to-point only | Multi-drop bus, daisy-chain |
| Duplex mode | Full duplex (separate TX and RX wires, simultaneous) | Half duplex (2-wire: A and B shared). Full duplex with 4-wire configuration. |
| Driver output voltage | Plus or minus 5 V to 15 V single-ended | Plus or minus 1.5 V to 6 V differential |
| Receiver sensitivity | Plus or minus 3 V minimum from GND | Plus or minus 200 mV differential minimum |
| Receiver input impedance | 3 to 7 kilohms | 12 kilohms minimum (1 unit load) |
| Common-mode range | Not applicable (single-ended) | Typically plus or minus 7 V. Extended versions plus or minus 25 V. |
| Noise immunity | Poor in industrial environments. Susceptible to ground loops and common-mode noise. | Excellent. Common-mode noise cancels in differential receiver. |
| Termination required | Not required for short runs | 120 ohm at both cable ends for runs above 30 m |
| Typical connector | DB-9 (9-pin), DB-25 (25-pin) | Screw terminals, RJ45, DB-9 (varies by manufacturer) |
| Cable requirement | Shielded recommended. Individual conductors acceptable at short range. | Shielded twisted pair required for runs above 30 m and all industrial installations. |
| EIA/TIA standard | TIA/EIA-232-F | TIA/EIA-485-A |
| Typical industrial use | Laptop to PLC programming cable, HART modem, analyser configuration port, barcode reader | Modbus RTU networks, energy meters, VFD control, SCADA field devices, instrument buses |

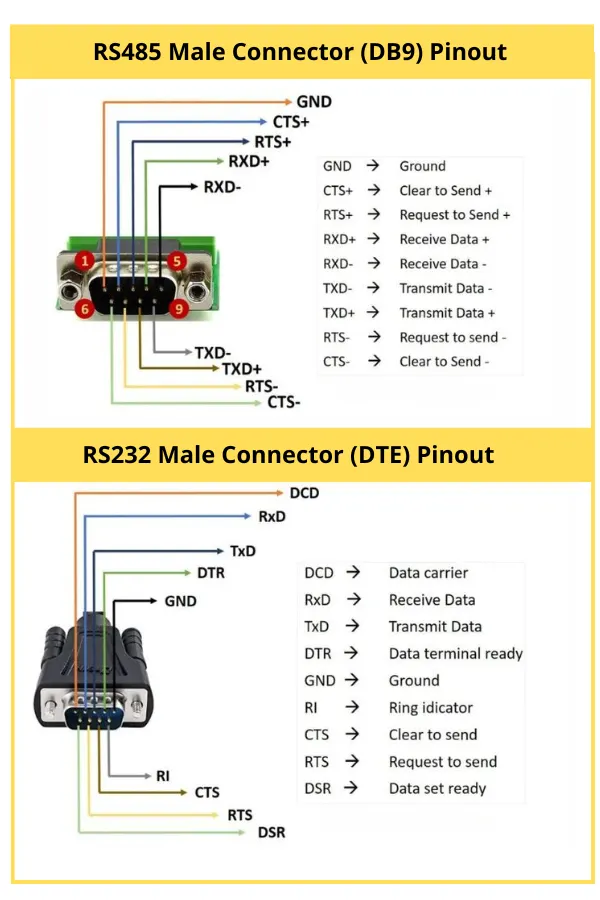

DB-9 Connector Pinout for RS232
The DB-9 (9-pin D-sub) connector is the standard RS232 connector on modern industrial and computing equipment. For most simple instrument connections, only three pins are needed: Pin 2 (RX), Pin 3 (TX) and Pin 5 (GND). The remaining pins are modem control signals used mainly for dial-up modem applications and are rarely needed for direct instrument-to-instrument connections.
Figure 3: DB-9 male pin layout as seen from the front (pin side). For direct instrument-to-instrument connections, only Pin 2 (RX), Pin 3 (TX) and Pin 5 (GND) are required. In a null-modem cable (DTE to DTE), Pin 3 on one end connects to Pin 2 on the other end and vice versa.
RS485 Two-Wire vs Four-Wire: Half Duplex vs Full Duplex
| Configuration | Wires | Duplex | How it works | Typical use |
|---|---|---|---|---|
| 2-wire RS485 | A and B only (plus optional GND reference) | Half duplex | All devices share the same A and B pair. Only one device transmits at a time. Devices switch between transmit mode and receive mode using a direction control signal (DE/RE pin on the driver IC). | Modbus RTU, most industrial instrument buses. The most common RS485 implementation worldwide. |
| 4-wire RS485 | TX+, TX- (master out) and RX+, RX- (master in) | Full duplex | The master has a dedicated transmit pair and a separate receive pair. Can transmit and receive simultaneously. Each slave listens on the master TX pair and responds on the master RX pair. | Applications needing continuous simultaneous data flow in both directions. Some DCS fieldbus and legacy HART networks. |
Which Standard Should You Use? Practical Selection Guide
- Connecting exactly two devices only, point-to-point
- Cable run is under 10-15 m in a clean environment
- Connecting a laptop or PC to a PLC programming port
- Connecting a HART modem to a control system serial port
- Connecting to a barcode reader, weighing scale or analyser with DB-9 port
- The device has RS232 only with no RS485 option
- Temporary commissioning connection inside a panel
- Connecting more than two devices on one network
- Cable run is longer than 15 m, especially in the field
- Environment has VFDs, motors, contactors or heavy switching
- Building a Modbus RTU network connecting instruments to DCS or PLC
- Connecting energy meters, flow computers or SCADA RTUs
- Wiring field instruments back to a central marshalling panel
- Needing faster data rates over moderate distances
Common Wiring and Installation Mistakes
| Mistake | What happens | How to prevent it |
|---|---|---|
| Connecting TX to TX instead of TX to RX | No communication at all. Both devices drive the same wire in opposite directions. | For two DTE devices (computer to computer, PLC to PLC): use a null-modem cable with TX and RX crossed. For DTE to DCE (computer to modem): use a straight-through cable. Always verify TX to RX connection before powering up. |
| Missing 120-ohm termination on RS485 | Signal reflections from the unterminated cable end return as a second delayed copy of the signal. Causes data errors especially at higher baud rates and on runs above 30 m. | Fit a 120-ohm resistor between A and B at both ends of the bus only (one at the master end, one at the far end of the last slave). Never add termination to intermediate devices on the bus. |
| Grounding RS485 cable shield at both ends | Creates a ground loop at mains frequency (50 or 60 Hz). Induces noise on the shield that can couple into the A and B pair, causing communication errors. | Ground the cable shield at one end only, typically the control room or panel end. Leave the field end floating, or connect through a 100 nF capacitor to local earth if high-frequency shielding is also needed. |
| Running RS485 cable in the same conduit as power cables | Even differential signalling has limits. Very high-level noise from adjacent power cables at close range can exceed the common-mode rejection range of RS485 drivers (typically plus or minus 7 V). | Maintain minimum 300 mm separation between RS485 signal cables and power or VFD cables. Use separate conduits or cable trays. Cross power cables at 90 degrees where unavoidable. |
| Too many devices without checking unit loads | Excessive bus loading slows signal transitions, reduces amplitude and causes errors. Standard RS485 allows 32 unit loads (each device = 1 unit load at 12 kilohm). | Count the unit loads on the bus. Use 1/8 unit load receivers to allow up to 256 devices per segment. Add repeaters to extend beyond one segment. |
Applications: Where RS232 and RS485 Are Used in Process Plants
| Application | Typically uses | Why |
|---|---|---|
| PLC programming cable (laptop to PLC) | RS232 | Short cable inside panel or to nearby rack. Point-to-point, no noise concern. |
| Modbus RTU instrument network | RS485 | Multiple devices (transmitters, analysers, energy meters) on a shared bus over long distances. |
| HART modem connection to control system | RS232 | HART modem typically uses RS232 to connect to the legacy serial port of a HART multiplexer or gateway. |
| VFD (variable frequency drive) speed control | RS485 | Modbus RTU over RS485 from PLC to VFD for remote speed and torque setpoint. Long cable runs, high-noise environment. |
| Energy meter network (kWh, power factor) | RS485 | Multiple meters daisy-chained on one RS485 Modbus RTU bus back to SCADA or energy management system. |
| Analyser configuration port | RS232 | Local laptop connection for configuration, calibration and diagnostic access. Short range, point-to-point. |
| Weighing scale or batching system | RS232 or RS485 | RS232 for single scale to PC. RS485 for multiple scales or hoppers sharing one serial network to DCS. |
| Remote I/O modules (Modbus) | RS485 | Field-mounted Modbus RTU I/O modules connected back to PLC over RS485. Can be hundreds of metres from panel. |
Further Reading and External Resources
- Texas Instruments: RS-485 and RS-422 Application Guide. The most comprehensive practical guide to RS485 electrical design, termination, cable selection and bus loading from a leading driver IC manufacturer.
- Analog Devices: RS-485 Interface Fundamentals. Technical explanation of differential signalling, common-mode rejection, receiver sensitivity and cable characteristics for RS485.
- Modbus.org: Modbus over Serial Line Specification. Official Modbus RTU over RS485 specification covering electrical requirements, timing and bus topology for industrial instrument networks.
- TIA-485-A Standard Summary. Technical overview of the TIA/EIA-485-A standard that defines the RS485 electrical interface, including unit load, common-mode range and termination requirements.
Frequently Asked Questions: RS232 vs RS485
- Modbus Protocol Explained: RTU vs TCP
- HART Protocol: How It Works and How to Use a HART Communicator
- Signal-to-Noise Ratio (SNR) in Instrumentation: Formulas and Calculator
- Analog vs Digital Signals in Instrumentation: A Complete Guide
- PLC Analog Scaling and Raw Count: Formula, Calculator and Brand Reference
- Ladder Logic for Beginners: A Complete Step-by-Step Guide
What we learn today
- RS232 uses single-ended signalling: data voltage is measured against a shared GND wire. Any noise on that GND wire corrupts the signal directly. This limits RS232 to 15 m and two devices only. RS485 uses differential signalling: the receiver measures the voltage difference between wire A and wire B. Noise that couples equally onto both wires cancels when subtracted. This gives RS485 1200 m range and industrial noise immunity.
- RS232 is full duplex with separate TX and RX wires and supports two devices only (point-to-point). RS485 in its standard 2-wire form is half duplex (A and B shared for both directions, one device transmits at a time) and supports up to 32 unit loads per bus segment. RS485 is the physical layer for Modbus RTU, which is used for connecting PLCs, DCS systems and SCADA to field instruments in most modern process plants.
- RS485 requires 120-ohm termination resistors at both ends of the bus (master end and far slave end only). Missing termination causes signal reflections and data errors on runs above 30 m. Cable shield must be grounded at one end only. Twisted-pair shielded cable is required. Separation from power cables must be at least 300 mm in industrial installations.

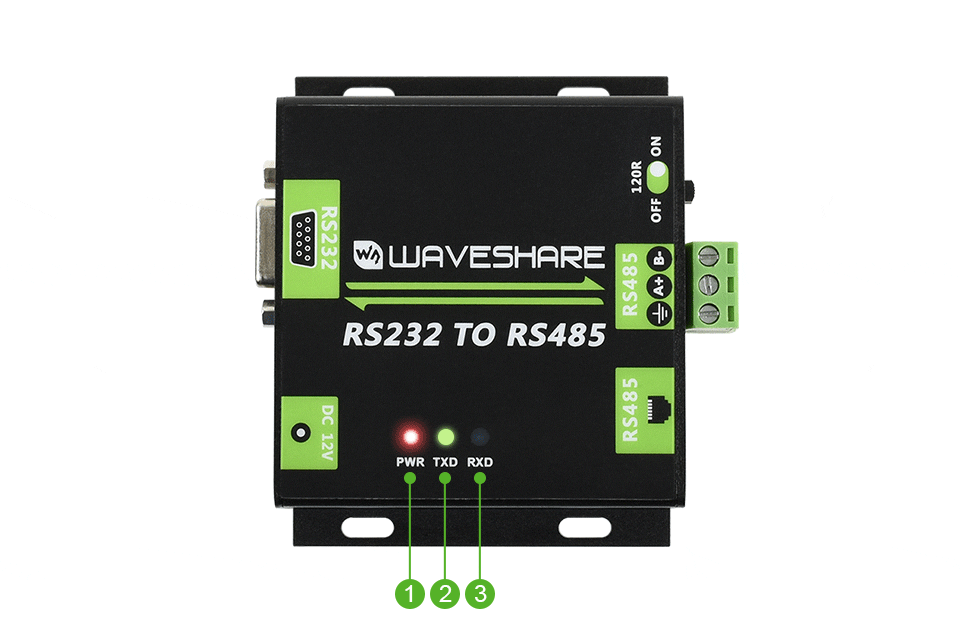

- In a process plant, use RS485 for any cable running to the field. Use RS232 only for short temporary laptop connections to local configuration ports, or connections inside a clean control panel. RS232-to-RS485 converters are readily available and allow legacy RS232 equipment to participate in RS485 Modbus networks without any protocol changes.
