PLC Redundancy Explained: Cold, Warm, and Hot Standby Compared
A single controller is a single point of failure. Here is how cold, warm, and hot standby differ, and which one your process can actually afford to be without for a few seconds, or can't afford to lose at all.
A single PLC is a single point of failure. This guide compares cold, warm, and hot standby redundancy architectures, explains what actually gets synchronized between primary and backup controllers, and helps you match the right level of redundancy to your process.
Why PLC Redundancy Matters
Industrial PLCs are highly reliable, but they remain a single point of failure, vulnerable to onboard faults, power interruptions, and network problems. For a non-critical process, a controller failure might mean an inconvenient delay while a technician swaps hardware. For a continuous chemical reactor, a power plant turbine, or a pharmaceutical batch mid-cycle, that same failure can mean a safety incident, a ruined product batch, or hours of lost production.
PLC redundancy solves this by duplicating the controller, and often the power supply, I/O, and network path as well, so a backup can take over automatically when the primary fails. The three common architectures, cold, warm, and hot standby, trade cost and complexity against how much disruption a failure actually causes.
Real Life Example

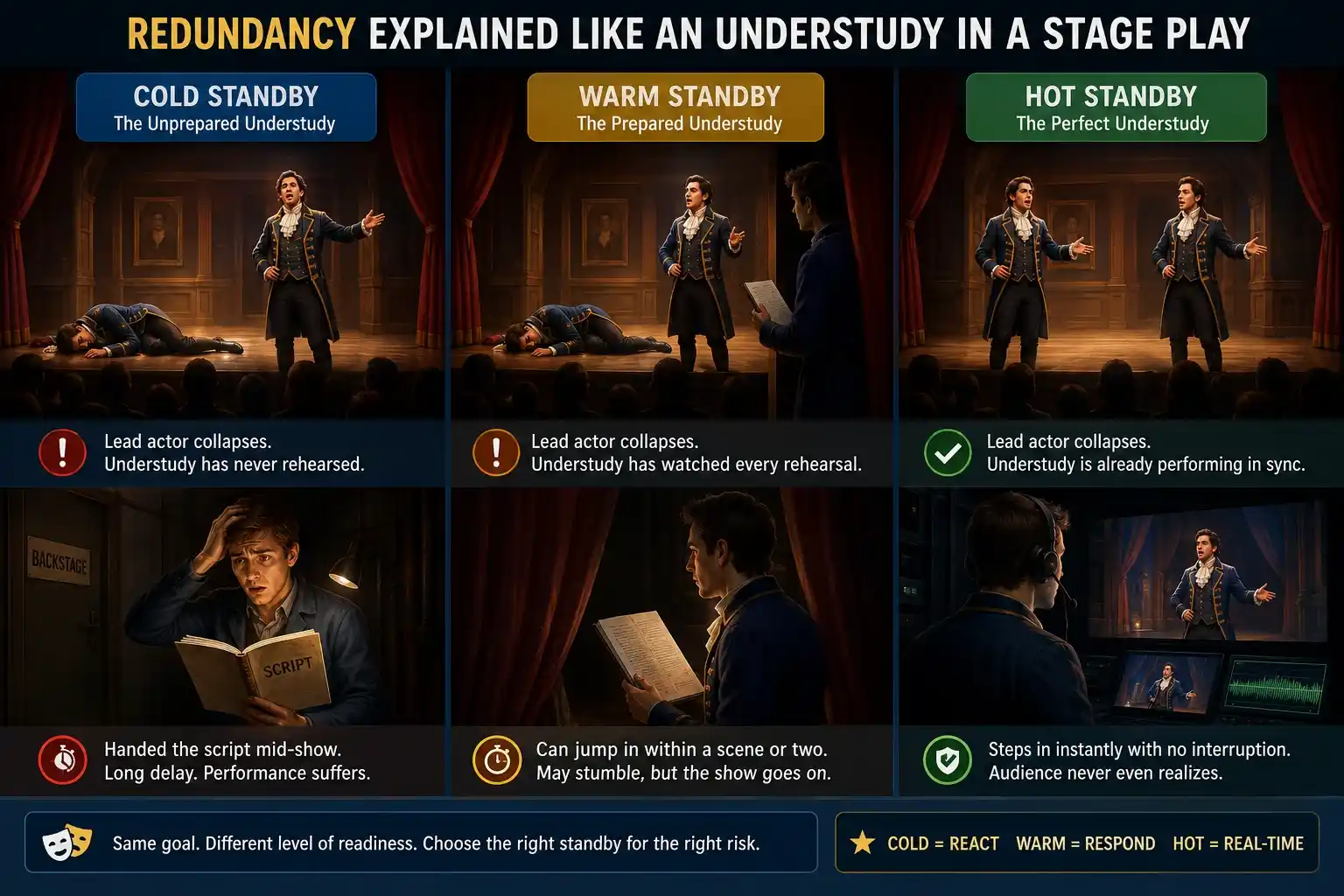

Think of an understudy in a stage play. Cold standby is like an understudy who has never rehearsed and must be handed the script mid-show if the lead actor collapses. Warm standby is an understudy who has watched every rehearsal from the wings and can jump in within a scene or two, though the audience notices a stumble. Hot standby is an understudy performing the exact same lines in perfect sync from backstage the entire time, so if the lead actor collapses, the audience never even realizes the actor changed.
Cold, Warm, and Hot Standby Compared
🧊 Cold Standby
🌤️ Warm Standby
🔥 Hot Standby
What Actually Gets Synchronized in Hot Standby
A true hot standby system does more than just run the same program on two CPUs. Before each program scan, or continuously during it, the primary controller transfers I/O status, memory values, timers, counters, and any program changes to the secondary over a dedicated synchronization link, usually fiber optic or a redundant Ethernet connection. This ensures that if a switchover happens, the secondary resumes exactly where the primary left off, with no reinitialization needed.
Redundancy at the CPU level alone is not enough for a genuinely fault-tolerant system. Power supplies, I/O modules, and network paths all remain single points of failure unless they too are duplicated. A complete redundancy design typically covers the CPU, the power supply, the I/O, and the communication network together.
Comparison Table
Choosing the Right Redundancy Level
| Application | Recommended Architecture |
|---|---|
| Parallel equipment where losing one unit is acceptable | Cold Standby |
| Fluid transfer with a tolerable few-second interruption | Warm Standby |
| Continuous chemical reactors | Hot Standby |
| Power generation turbines and boilers | Hot Standby |
| Pharmaceutical batch processes mid-cycle | Hot Standby |
| Small, non-critical machine control | Cold Standby |
| Water and wastewater pump stations | Warm to Hot Standby |
Applications of PLC Redundancy
Power Generation
Turbine and boiler control depends on hot standby to avoid millisecond-scale disruptions.
Oil and Gas
Pipeline and refinery process control uses redundant controllers to prevent costly unplanned shutdowns.
Pharmaceutical Manufacturing
Batch processes mid-cycle cannot tolerate a controller failure without risking the entire batch.
Water and Wastewater
Pump stations often use warm or hot standby to maintain continuous municipal service.
High Speed Manufacturing
Fast-moving conveyor and packaging lines rely on bumpless failover to avoid jams and scrap.
Forestry and Aggregates
Continuous processing lines use redundant PLCs to protect against costly unplanned downtime.
Common Redundancy Implementation Mistakes
✅ Do This
- Match firmware versions exactly between primary and standby controllers
- Redundant power supplies, I/O, and network paths alongside the CPU itself
- Test switchover regularly during scheduled maintenance windows
- Route the synchronization link away from high-voltage or high-noise sources
❌ Avoid This
- Assuming CPU redundancy alone protects against power or network faults
- Mismatched firmware versions between primary and standby units
- Treating a redundant system as a substitute for testing control logic thoroughly
- Skipping periodic manual failover tests until an actual emergency reveals a problem
PLC Hot Standby: Video Walkthrough
Frequently Asked Questions About PLC Redundancy
- ISA InTech, Controller Redundancy Under the Hood
- Inst Tools, What is PLC Redundancy?
- Automation.com, Controller Redundancy Under the Hood
What We Learn Today
- A single PLC is a single point of failure, and redundancy exists to eliminate that risk
- Cold standby needs manual intervention, warm standby causes a brief bump, hot standby is effectively bumpless
- True hot standby synchronizes memory, I/O status, and program changes every single scan
- Redundancy protects against hardware, power, and network faults, but never against a software logic bug
- Matching redundancy level to process criticality, not just budget, is the core design decision
