Triconex PLC Introduction – Not All PLCs Are Born Equal
Before learning Triconex PLC, let us imagine that you are standing on the control deck of an offshore oil rig. Beneath you, hundreds of pumps, compressors and valves are working in perfect coordination. The hum of machinery is constant. Billions of dollars of equipment and countless human lives depend on everything running smoothly.
Now, imagine a gas leak suddenly detected in one section of the plant. Within milliseconds, the system has to decide: shut down? Isolate? Vent? Or keep running? Make the wrong call and the results could be catastrophic.
In such a moment, would you trust the same PLC that runs a bottling line in a beverage factory? Probably not.
This is where Triconex PLCs enter the picture. While Siemens, Allen-Bradley, Omron and Schneider PLCs are fantastic at process automation, Triconex belongs to a special breed: safety PLCs built for critical protection.
In this article, we will learn the DNA of Triconex, how it differs from conventional PLCs, and why industries where failure is not an option continue to rely on it.
The DNA of Triconex PLC – Born for Safety
When most PLCs were designed to optimize production, Triconex was born with one mission: to protect. Founded in 1983 and later acquired by Invensys (now Schneider Electric), Triconex was not competing with others to run packaging machines faster.
It was tackling a different challenge — how do you guarantee that a control system will still respond correctly even if part of it fails?
The answer: Triple Modular Redundancy (TMR).
Think of it like this: you have three pilots flying the same airplane at the same time. Each reads the instruments, each makes a decision, and only when two of them agree does the aircraft respond. If one pilot has a bad reading, he’s outvoted. That’s TMR in a nutshell.
This architecture is what makes Triconex different from day one — it is not just controlling; it is continuously double-checking itself to make sure no single point of failure can bring a plant down.

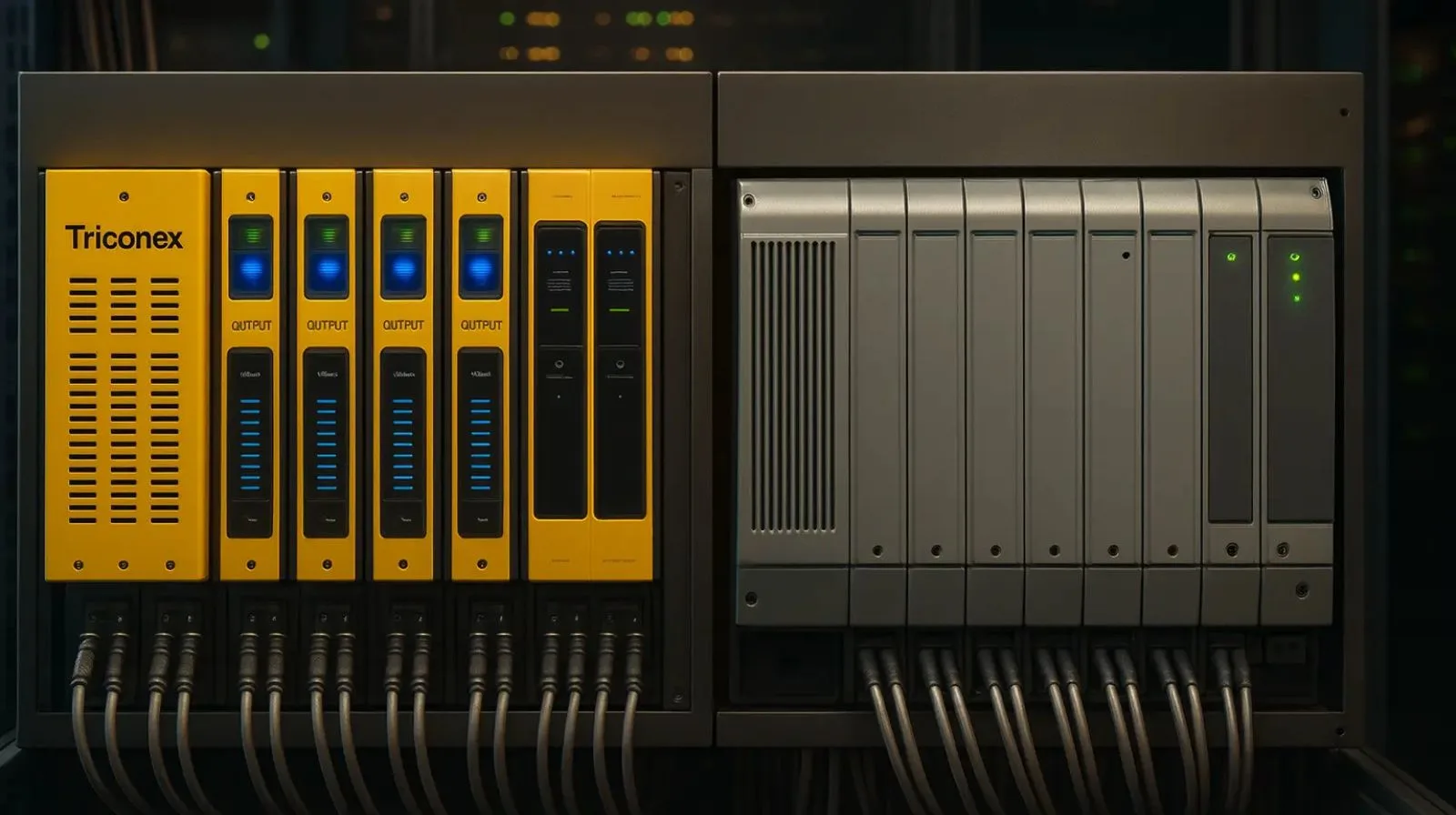

How Triconex Differs from Conventional PLCs
1. Architecture – Redundancy at Its Core
Most standard PLCs have one CPU. Some higher-end ones offer redundancy, where a backup CPU takes over if the first fails. That’s solid engineering — but Triconex takes it further.
With TMR, three independent processors run the same logic in parallel. Every signal is voted on before the output is sent. If one fails, the other two keep the system running without interruption.
Think of it like referees in a football match. A standard PLC is like having one referee — if he misses a foul, that’s it. A redundant PLC is like having a backup referee who can step in if the first collapses. But Triconex? That’s three referees on the field, constantly voting on every decision.
2. Purpose – Control vs. Protection
Other PLCs are designed for process control: move this conveyor belt, regulate that pump, adjust this valve. They keep factories efficient and productive.
Triconex is designed for protection: emergency shutdown systems, fire & gas detection, burner management. In other words, it’s the last line of defense.
A bottling plant PLC worries about throughput. A Triconex PLC worries about whether a chemical reactor might overheat and explode.
3. Safety Standards – The SIL Factor
If you’re in instrumentation, you know about SIL (Safety Integrity Level) ratings. They’re like the crash-test ratings for control systems.
- Triconex PLCs are certified up to SIL 3 and even SIL 4 under IEC 61508 — the highest levels of functional safety.
- Most other PLCs: SIL 1 or SIL 2, if certified at all.
It is the difference between a standard car seatbelt and the reinforced harness in a Formula One race car. Both restrain you, but one is engineered for far more extreme situations.
4. Reliability & Fault Tolerance
Reliability isn’t just about running — it’s about running even when things go wrong.
- Triconex: Hot-swappable modules, continuous self-diagnostics, fault tolerance that allows the system to keep working even if one processor or module fails.
- Other PLCs: Can switch to backup processors, but not always seamless.
In practice, this means a Triconex PLC in a refinery can detect a fault in one processor, automatically isolate it, and continue protecting the plant — all without shutting down operations.
5. System Availability – The Five Nines
System availability is a measure of how often a system is up and running.
- Triconex: Designed for 99.999% uptime (the famous “five nines”). That’s less than six minutes of downtime per year.
- Other PLCs: Excellent availability, but usually lower depending on configuration and redundancy.
Analogy: That’s the difference between your home Wi-Fi uptime (which drops when the power flickers) and NASA’s Deep Space Network, which must keep tracking spacecraft millions of miles away without interruption.
6. Cost Factor – Paying for Peace of Mind
Yes, Triconex systems cost more. Their TMR hardware, certifications, and engineering overhead make them more expensive than conventional PLCs.
But ask any oil & gas operator: one prevented emergency shutdown or avoided accident saves millions. Suddenly, that upfront cost looks like a bargain.
7. Programming Environment – Safety First
- Triconex: Uses TriStation 1131, an IEC 61131-compliant software environment built specifically with safety in mind. It emphasizes simplicity, traceability, and security.
- Other PLCs: Use versatile environments like Siemens TIA Portal, Allen-Bradley Studio 5000, or Schneider Unity Pro, designed for flexibility and speed in automation.
Think of it like comparing a medical grade monitoring device to a consumer smartwatch. Both measure your heartbeat, but one is built for life-and-death accuracy.
Case Study Comparisons
Case 1 – Offshore Oil Rig
A gas compressor trips. In milliseconds, the Triconex system detects abnormal pressure rise. Two out of three processors vote to initiate shutdown. Valves close, isolating the section, preventing escalation. The crew barely notices the incident.
Case 2 – Automotive Assembly Line
A conveyor stops. The Siemens PLC running the line detects the fault, halts operation, and sends an alarm to maintenance. No lives at risk, no catastrophic consequences — just a production delay.
Same technology family (PLCs), but completely different priorities.
Choosing the Right Tool for the Right Job
So, back to the oil rig we imagined at the beginning. When danger strikes, do you want a PLC that is optimized for speed, or one that is obsessed with safety?
That’s the essence of the Triconex vs. other PLC debate. Neither is “better” in absolute terms. They’re just different tools for different jobs.
- If you are running a factory line, a Siemens, Allen-Bradley, or Omron PLC might be perfect.
- If you are protecting a refinery, a nuclear plant, or an offshore platform, Triconex is the gold standard.
The real question isn’t “Which PLC is better?” It’s “How much is safety worth to you?”
