Types of Level Transmitters: Introduction
In many industrial processes, knowing how much material is inside a tank or vessel is extremely important. Industries such as water treatment, chemical processing, food production, oil & gas, and power plants rely heavily on accurate level measurement to maintain safe and efficient operations.
This is where level measurement transmitters play a key role.
A level transmitter is an instrument that continuously measures the level of liquids or bulk solids inside a tank, silo, or container. The transmitter converts the measured level into an electrical signal, usually 4–20 mA, which is then sent to a control system such as a PLC or DCS for monitoring and control.
Level transmitters can measure a wide variety of materials including:
Liquids such as water, fuel, oil, and chemicals
Viscous liquids like syrups or sludge
Bulk solids such as grains, powders, or pellets
Because of their versatility, level transmitters are widely used in industries such as material handling, food & beverage, chemical plants, water treatment facilities, and power generation.
Working Principle of Level Transmitters
Level transmitters operate using different physical principles depending on the technology used. Some transmitters measure pressure, others use sound waves or electromagnetic signals to determine the level inside a tank.
For example:
Capacitance transmitters measure changes in electrical capacitance.
Hydrostatic transmitters measure pressure caused by the weight of liquid.
Ultrasonic transmitters calculate level by measuring the travel time of sound waves.
Radar transmitters use microwave signals to detect the surface of the liquid.
Despite using different technologies, most level measurement systems determine level using three basic physical principles.
1. Weight of the Fluid
The weight of the liquid inside a tank creates pressure at the bottom. By measuring this pressure, the level of the liquid can be calculated.
This principle is used in hydrostatic and pressure-based level transmitters.
2. Pressure Head of the Fluid
The height of liquid above a measurement point produces pressure known as hydrostatic pressure. The greater the height of the liquid column, the greater the pressure.
Hydrostatic level transmitters use this principle to determine liquid levels.
3. Position of the Fluid Surface
Some transmitters measure the distance between the sensor and the liquid surface. This distance is then converted into level measurement.
This principle is used by ultrasonic, radar, and microwave level transmitters.
Direct vs Indirect Level Measurement
Level measurement methods are generally classified into two categories.
1. Direct Level Measurement
Direct measurement involves physically observing or detecting the level position directly.
Examples include:
Sight glass indicators
Float-based level indicators
Dipsticks
Direct methods are simple but usually suitable only for small tanks or manual monitoring.
2. Indirect Level Measurement
Indirect methods measure a physical property related to the level, such as pressure, capacitance, or wave reflection.
Most modern transmitters use indirect methods because they:
Provide continuous measurement
Work in harsh industrial environments
Can measure very high or very low levels
Contact vs Non-Contact Level Measurement
Another important classification is contact and non-contact measurement technologies.
1. Contact Level Measurement
In contact measurement, the sensor touches the liquid or material being measured.
Examples include:
Capacitance transmitters
Hydrostatic transmitters
Guided radar transmitters
These sensors are generally accurate but may be affected by corrosion, temperature, or chemical reactions.
2. Non-Contact Level Measurement
Non-contact sensors measure the level without touching the material.
Examples include:
Ultrasonic transmitters
Radar transmitters
These instruments are ideal for aggressive chemicals, high temperatures, or hygienic processes.
Types of Level Transmitters
There are several technologies used to measure level in industrial applications. Each type has its own working principle and is suitable for specific conditions.
Below are some of the most commonly used level transmitters in process industries.
1. Capacitance Level Transmitters
Capacitance level transmitters work based on the capacitance principle.
A capacitor consists of two conductive plates separated by a dielectric material. In this type of transmitter:
The probe acts as one plate of the capacitor
The tank wall or reference electrode acts as the second plate
The liquid acts as the dielectric medium
When the level of liquid rises, the dielectric constant between the plates changes. This causes a change in capacitance value, which the transmitter converts into a level signal.
These transmitters are commonly used for:
Liquids
Slurries
Bulk solids
Powder storage silos
2. Hydrostatic Level Transmitters
Hydrostatic level transmitters measure level based on liquid pressure at the bottom of a tank.
The pressure produced by a liquid column depends on:
Density of the liquid
Height of the liquid column
Gravitational acceleration
By measuring this pressure using a pressure sensor, the transmitter calculates the level.
Hydrostatic transmitters are widely used for:
Water tanks
Wastewater treatment plants
Open reservoirs
Underground storage tanks

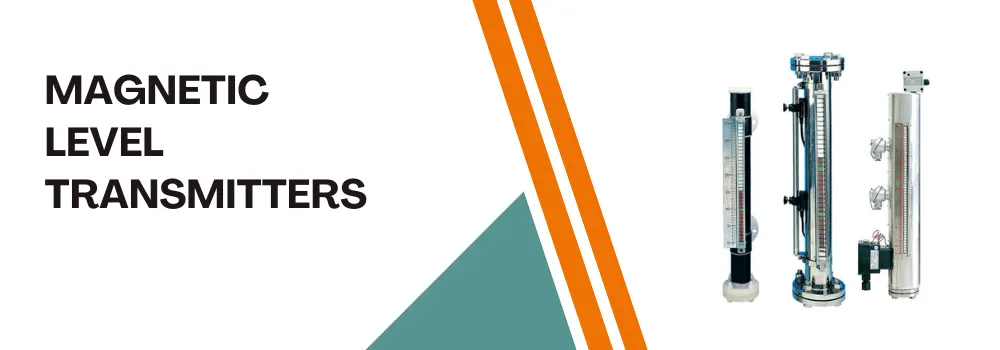

3. Magnetic Level Transmitters
Magnetic level transmitters use a magnetic float that moves with the liquid level.
The float moves up and down with the liquid level. As it moves, the magnetic field interacts with sensors mounted outside the measuring chamber.
These sensors detect the float position and convert it into a continuous level signal.
Magnetic level transmitters provide:
Stable measurement
Good accuracy
Reliable operation in industrial environments
They are often used in chemical tanks, boilers, and process vessels.

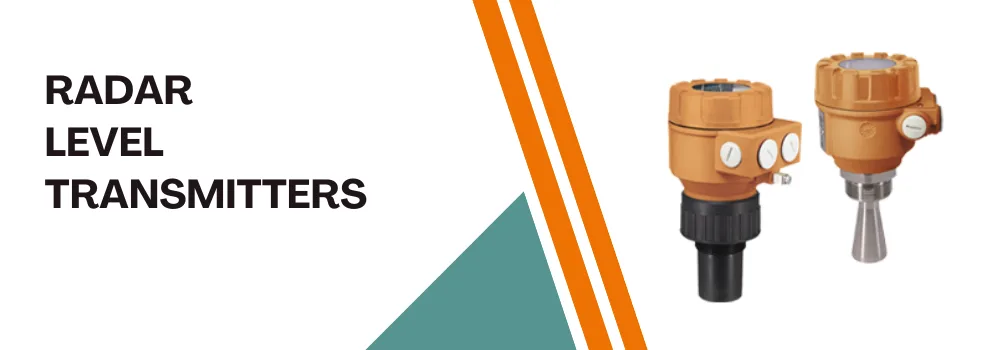

4. Radar Level Transmitters
Radar level transmitters operate using radar level measurement technology.
The transmitter sends a microwave pulse toward the surface of the liquid. The signal reflects from the surface and returns to the sensor.
The transmitter calculates the distance based on the time taken for the signal to return.
Radar transmitters are ideal for:
High temperature processes
High pressure vessels
Steam environments
Aggressive chemicals

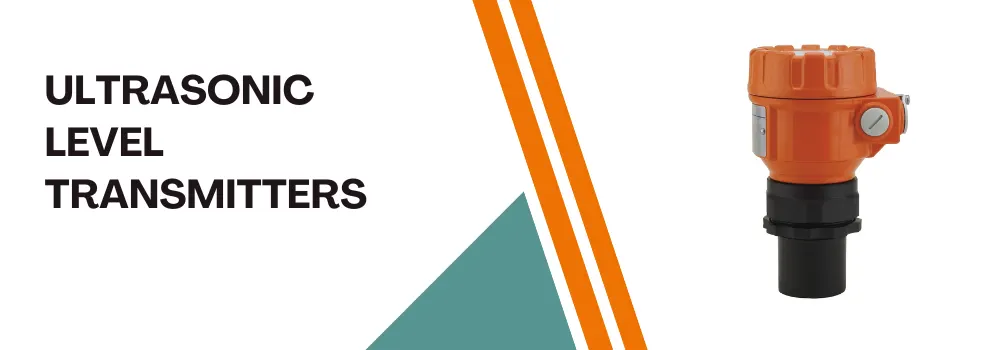

5. Ultrasonic Level Transmitters
Ultrasonic transmitters measure level using an ultrasonic sensor.
A sensor mounted at the top of a tank sends an ultrasonic pulse toward the liquid surface. The pulse reflects back to the sensor after hitting the surface.
The transmitter calculates the level based on the time difference between transmitted and received signals.
Ultrasonic level transmitters are commonly used for:
Water tanks
Sewage treatment plants
Chemical storage tanks
Open channel flow measurement

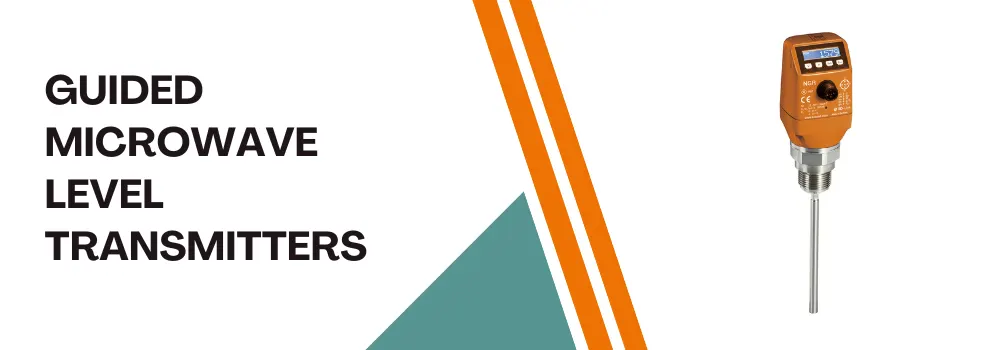

6. Guided Microwave Level Transmitters
Guided microwave transmitters are also known as Guided Wave Radar (GWR) transmitters.
In this method, a microwave pulse travels along a probe rod or cable inserted into the tank.
When the pulse reaches the liquid surface, part of the signal is reflected back to the transmitter.
The electronics measure the time taken for the signal to travel down and back up the probe, allowing the instrument to determine the level accurately.
These transmitters are widely used in:
Oil and gas processing
Chemical plants
Power plants
Pharmaceutical manufacturing

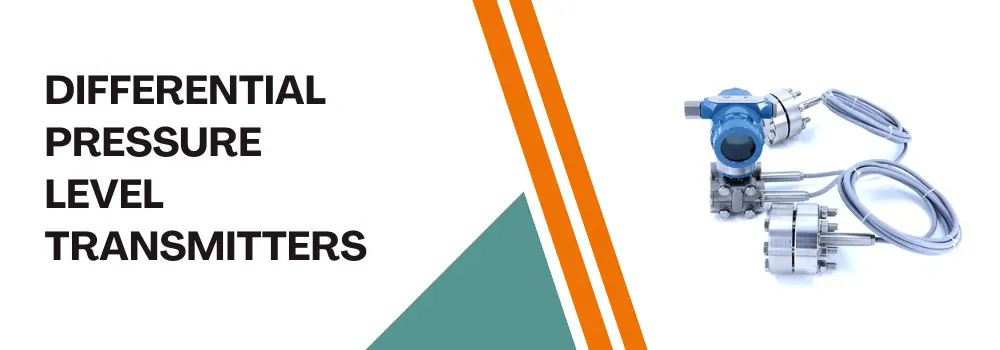

7. Differential Pressure Level Transmitters
Differential Pressure (DP) level transmitters measure liquid level by detecting the pressure difference between two points in a tank or vessel.
In this method, one pressure port of the transmitter is connected to the bottom of the tank where the liquid pressure is highest. The second port is connected to the top of the tank where the pressure is lower. The transmitter calculates the level by measuring the difference between these two pressures.
This method is commonly used in closed tanks and pressurized vessels because it can compensate for the pressure inside the vessel.
DP level transmitters are widely used in industries such as:
Power plants for boiler drum level measurement
Chemical processing plants
Oil and gas storage tanks
Pressurized vessels and reactors
These transmitters often use a differential pressure sensor to accurately determine the pressure difference.
8. Displacer Level Transmitters
Displacer level transmitters operate based on Archimedes’ buoyancy principle, which states that an object submerged in a fluid experiences an upward buoyant force equal to the weight of the displaced liquid.
A cylindrical displacer is suspended inside the tank and partially immersed in the liquid. As the level changes, the buoyant force acting on the displacer changes. This change in force is transmitted through a mechanical linkage or torque tube to the transmitter, which converts it into a level measurement signal.
Displacer level transmitters are suitable for applications where the liquid density remains relatively constant.
Typical applications include:
Refineries and petrochemical plants
Storage tanks with stable liquid density
Interface level measurement
Process vessels in chemical plants
These transmitters are known for their reliable and stable measurements in clean liquid applications.
9. Conductivity Level Transmitters
Conductivity level transmitters detect liquid levels based on the electrical conductivity of the liquid.
The transmitter uses probes or electrodes placed at different levels in the tank. When the conductive liquid touches the probe, an electrical circuit is completed, indicating the presence of liquid at that level.
This method is particularly effective for liquids that conduct electricity, such as water, acids, and alkaline solutions.
Conductivity level transmitters are commonly used in:
Boiler water level monitoring
Water treatment plants
Chemical storage tanks
Cooling towers and process tanks
However, this technology is not suitable for non-conductive liquids such as oils or hydrocarbons.
10. Optical Level Transmitters
Optical level transmitters use light-based detection methods to determine the presence of liquid.
These sensors contain an infrared LED and a phototransistor. When the sensor tip is in air, the light emitted by the LED is reflected internally within the sensor. When the sensor is immersed in liquid, the light escapes into the liquid, reducing the reflected signal.
The electronics inside the transmitter detect this change in light reflection and determine whether the sensor is in contact with liquid.
Optical level transmitters are typically used in applications such as:
Small tanks and reservoirs
Medical and laboratory equipment
Cooling systems
Compact industrial machines
They are known for their compact design, fast response time, and high reliability in small-scale applications.
What we lean today?
Level measurement transmitters are essential instruments in modern industrial processes. They help operators monitor material levels accurately, ensuring safe operations, efficient production, and proper inventory management.
Different technologies such as capacitance, hydrostatic, ultrasonic, radar, and guided microwave transmitters are used depending on the application requirements.
Selecting the right level transmitter depends on several factors such as:
Type of material (liquid, slurry, or solid)
Temperature and pressure conditions
Tank size and geometry
Required accuracy and reliability
Understanding the working principles of these transmitters helps engineers and technicians choose the most suitable technology for their process, ultimately improving plant safety and operational efficiency.
