Condensate Pot Used in Steam Service Transmitters: Introduction
In industrial plants, especially in boilers and steam lines, accurate pressure and level measurement is essential for safe and efficient operation. But when measuring steam pressure or boiler drum level, one small accessory plays a big role in protecting the instrument and ensuring reliable readings which is the Condensate Pot.
In this article, we will explain what a condensate pot is, how it works, and why it is so important for transmitters used in steam service.

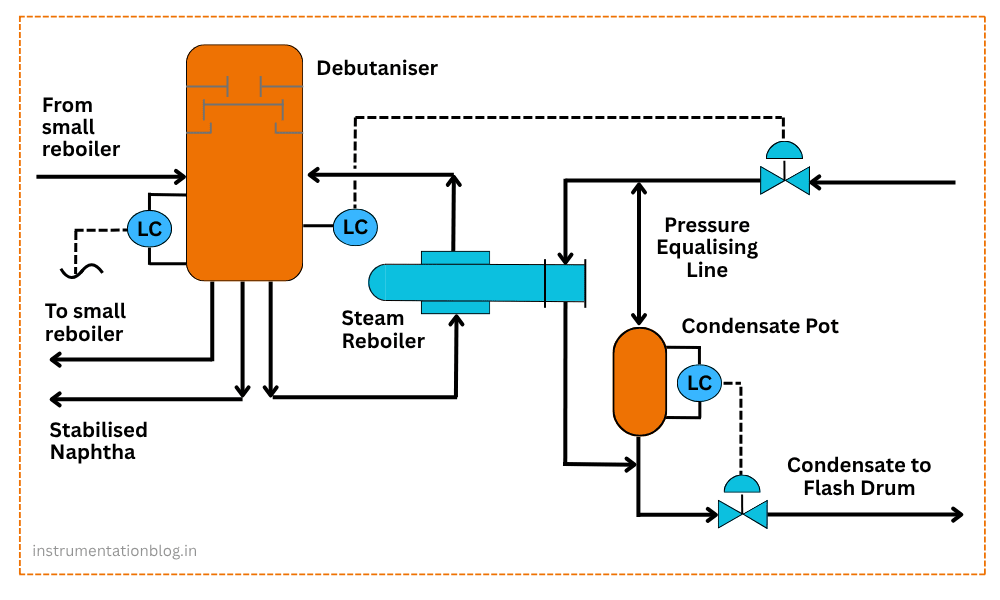

What is a Condensate Pot?
A condensate pot, also known as a seal pot, is a small cylindrical vessel installed in impulse lines between the steam process and the pressure transmitter.
Its main purpose is to collect and hold condensate (condensed steam) so that the pressure transmitter does not come in direct contact with high-temperature steam.
It is generally made from stainless steel, carbon steel, or alloy steel, depending on the application pressure and temperature. Condensate pots are installed on both high-pressure (HP) and low-pressure (LP) sides of a differential pressure (DP) transmitter used for measuring steam flow or level.
Why Do We Need a Condensate Pot in Steam Lines?
When measuring pressure or level in a steam application, the transmitter’s impulse lines carry steam from the process to the transmitter. If live steam directly enters the transmitter, it can damage the sensing element due to the high temperature often above 200°C.
Here is what the condensate pot does to prevent that:
It traps steam condensate inside the pot.
The pot maintains a constant column of condensate in the impulse lines.
This ensures that only condensate (not live steam) reaches the transmitter diaphragm.
In short, the condensate pot acts as a thermal barrier and ensures both impulse lines remain filled equally with condensate, allowing accurate differential pressure measurement.
Working Principle of Condensate Pot
Let us understand the simple working concept behind it.
When steam flows through the line, some portion naturally condenses due to heat loss. The condensate collects inside the pot and gradually fills the impulse line. Once both lines (HP and LP) are filled with condensate, a stable liquid column forms above each pot.
This column acts as a buffer between the steam and the transmitter. Because the height of condensate in both legs is equal, the transmitter senses only the true process pressure difference unaffected by temperature fluctuations or varying condensation rates.
Without a condensate pot, unequal condensate buildup in impulse lines could lead to erroneous readings, instrument drift, or even transmitter failure due to overheating.
Condensate Pot in Boiler Drum Level Measurement
In boiler drum level measurement, two condensate pots are used one on the high-pressure side (connected to the steam space) and the other on the low-pressure side (connected to the water space).
Here is how it works:
1) The HP leg is connected to the steam space of the drum. Steam entering the impulse line condenses and fills the line with water.
2) The LP leg is connected to the water space of the drum and already contains water.
3) Both legs now contain a column of water at the same reference height, and the transmitter measures the difference in pressure between the two columns.
The condensate pots ensure both impulse lines have equal condensate levels, giving stable and accurate readings regardless of steam temperature or pressure changes.
Installation Guidelines
Proper installation is critical for accurate measurement. Here are some standard guidelines:
1) Install both pots at the same height This ensures both legs have equal hydrostatic head.
2) Connect the pot’s top to the impulse line and the bottom to the transmitter.
3) Provide proper vent and drain connections for filling and maintenance.
4) Use stainless steel tubing and steam-rated fittings for reliable performance.
5) During commissioning, fill both pots with clean condensate to the same level before starting up the system.
A well installed condensate pot setup ensures both transmitter sides are exposed to equal temperature and pressure conditions.
Advantages of Using Condensate Pots
Here are some key benefits that make condensate pots essential in steam service transmitters:
1. Protects the Transmitter from High Temperatures
Steam temperature can exceed 200°C, while transmitters typically operate safely up to around 85°C. The condensate pot prevents hot steam from directly reaching the transmitter, protecting the sensor diaphragm from heat damage.
2. Ensures Measurement Accuracy
By maintaining equal liquid columns in both impulse lines, condensate pots eliminate measurement errors caused by unequal condensation or vapor pockets.
3. Provides System Stability
The liquid seal inside the pots remains constant, ensuring stable pressure transmission and reducing fluctuations in the transmitter output.
4. Prevents Steam Leakage
The sealed design of the condensate pot and impulse lines prevents steam from escaping, maintaining process integrity and safety.
5. Extends Transmitter Life
By protecting against temperature shock and corrosion, condensate pots help extend the overall service life of pressure transmitters in steam applications.
Common Mistakes to Avoid
Even though it is simple, a few mistakes during installation or maintenance can lead to wrong readings or failures:
1) Installing pots at unequal heights, causing unbalanced liquid columns
2) Not filling both legs properly before starting
3) Using long impulse lines without proper insulation, leading to uneven condensation
4) Ignoring drain or venting during calibration or shutdown
Following correct procedures ensures accurate and consistent measurements.
Material Selection
Condensate pots are available in various materials such as:
1) Stainless Steel (SS316/SS304) – Commonly used for corrosion resistance
2) Carbon Steel – Suitable for high-pressure applications
3) Alloy Steel or Monel – Used in special or corrosive environments
The choice of material depends on the process medium, pressure, and temperature.
What we learn today?
The condensate pot may look like a small component in a steam measurement system, but its role is very critical and important. It ensures the safety, accuracy, and longevity of pressure transmitters by maintaining a stable condensate seal and protecting the instrument from extreme temperatures.
In steam service, especially in boiler drum level and pressure measurement, condensate pots are not optional they are required for reliable performance.
So, next time you look at a DP transmitter in a steam line, remember the little condensate pot beside it is quietly doing a big job!
