In industrial automation, many processes like temperature, pressure, flow, or level need to be controlled accurately.
But not all processes respond at the same speed. Some variables change slowly, while others react very quickly. This creates challenges for normal single-loop controllers (like a basic PID loop).
To solve this problem, industries use a smarter and more reliable method called Cascade Control.
Cascade control is very popular in the instrumentation and process industry because it improves response time, reduces errors, and makes the entire system more stable.
In this article, we will understand the concept of cascade control in instrumentation.
What Is Cascade Control?
Cascade control is a control strategy where two control loops work together to control a single important variable in a process. These two loops are:
Primary loop – controls the main variable (like temperature)
Secondary loop – controls a related variable (like flow or pressure)
The idea is that the primary controller acts like a teacher, and the secondary controller acts like an assistant.
The primary controller gives instructions (setpoint) to the secondary controller, and the secondary controller responds quickly to disturbances.
This teamwork allows the system to correct problems much faster than a single-loop system.
Why Do We Need Cascade Control?
Some process variables are slow to change. For example:
1) Temperature changes slowly
2) Level changes slowly
3) Reactors take time to respond
4) Furnaces and boilers have long dead time
If you rely only on one controller, it may react too late. By the time the controller adjusts the final control element, the error may have become too big.
Cascade control solves this by adding a fast, inner loop that can catch disturbances early.

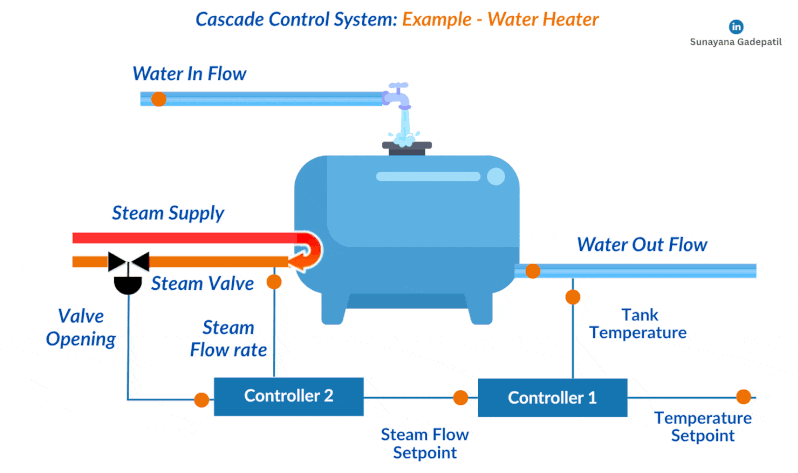

A Simple Example to Understand Cascade Control
Imagine you are heating water in a tank. Your goal is to maintain the water temperature at 60°C.
Primary Loop (Slow Loop): Controls Temperature
1) The temperature sensor measures water temperature.
2) The temperature controller tries to keep the set temperature.
3) But temperature changes slowly.
Secondary Loop (Fast Loop): Controls Flow
1) A flow sensor measures hot water flow going into the tank.
2) The flow controller adjusts a control valve that controls the flow rate.
3) Flow changes quickly, almost immediately.
Here’s how they work together:
1) The primary (temperature) controller does not directly open or close the valve.
2) Instead, it gives a setpoint to the flow controller.
3) The secondary (flow) controller quickly adjusts the valve to maintain the desired flow, helping the water temperature stay stable.
It’s like:
1) The primary controller (teacher) decides how much heat is needed.
2) The secondary controller (assistant) quickly adjusts the flow of hot water.
This setup makes the temperature control much faster and more stable.
How Cascade Control Works?
Here is the basic working principle in simple steps:
1) Two Sensors Are Used
Each loop has its own sensor:
- The primary sensor measures the main variable (like temperature).
- The secondary sensor measures a supporting variable (like flow).
2) The Primary Controller Sets the Setpoint for the Secondary Controller
Instead of giving its output to the valve directly, the primary controller gives a setpoint to the secondary controller.
3) The Secondary Controller Adjusts the Final Control Element
This secondary controller reacts faster and adjusts:
- A valve
- A pump
- A heater
- A compressor
4) The System Responds Faster to Disturbances
Any disturbance in the secondary loop is corrected quickly before it affects the main process variable.
This makes the overall system more stable and accurate.
What Types of Processes Need Cascade Control?
Cascade control is most useful when:
- The primary variable changes slowly
- The secondary variable changes quickly
- Disturbances affect the secondary loop first
- Precise control is required
You will commonly see cascade control in:
- Temperature control of tanks and heat exchangers
- Reactor temperature control
- Boiler drum level control
- Pressure control of compressors
- Flow + Pressure control of pumping systems
- Furnace fuel-air control
Advantages of Cascade Control
Cascade control is used widely because it offers several important benefits.
1) Faster Response to Disturbances
The inner loop catches disturbances early.
For example:
- Sudden change in steam pressure
- Sudden change in inlet flow
- Valve sticking issues
The secondary controller acts faster than the primary controller.
2) Reduces Process Lag and Dead Time
Slow processes (like temperature or level) have long dead times.
Cascade control helps avoid delay by using a fast inner loop.
3) More Accurate & Stable Control
The primary loop gets help from a fast, responsive loop, which makes control smoother and prevents overshoot and fluctuations.
4) Better Protection Against Upsets
If a valve sticks or supply pressure changes, the inner loop handles it instantly.
Limitations of Cascade Control
Even though cascade control is better than simple control loops, it also has some challenges.
1) Higher Cost
Two loops require:
- Two sensors
- Two transmitters
- Two controllers
- More wiring
- More engineering effort
2) More Tuning Complexity
Both loops must be tuned carefully.
Incorrect tuning can make the system unstable.
3) Requires Good Understanding of Process
You need to understand:
- Which variable should be primary
- Which should be secondary
- Where disturbances occur
- How fast each loop responds
Without this knowledge, cascade control may not give good results.
Rules for Successful Cascade Control
To make cascade control effective, certain rules must be followed:
The secondary loop must be faster than the primary loop
This ensures early disturbance correction.
The secondary loop must be tuned first
Only then should you tune the primary loop.
The secondary variable must directly affect the primary variable
For example:
- Flow affects temperature
- Pressure affects flow
- Air flow affects combustion temperature
The secondary sensor must be reliable and fast
If the secondary measurement is noisy or slow, cascade control will not work well.
Why Cascade Control Is So Popular in Industries
Industries choose cascade control because it:
- Improves product quality
- Reduces process variations
- Saves energy
- Protects equipment
- Improves safety
- Provides more consistent control
When a plant runs smoothly with fewer fluctuations, the overall efficiency increases, and production becomes more reliable.
What we learn today?
Cascade control is a powerful and practical control strategy used across industrial processes.
It uses two control loop, a slow primary loop and a fast secondary loop to maintain stable and accurate control.
By detecting disturbances early and responding quickly, cascade control provides better performance than standard single-loop control.
Although it requires extra sensors, controllers, and tuning, the benefits such as fast response, reduced lag, and improved accuracy make it extremely valuable in modern instrumentation and process industries.
Always remember that the dynamic (time constant x dead time) of secondary loop should be at least 5 times of the dynamic of primary loop, means secondary loop should be faster than primary loop
