Turndown ratio is a term used in flow measurement that shows how wide a flow meter’s measuring range is while still giving accurate results. It is the ratio between the maximum and minimum flow rates the device can handle accurately.
For example, if a meter can measure flow from 2 units to 10 units, the turndown ratio is 5:1. This term is often used with flow meters and in combustion systems like boilers and gasifiers to describe how flexible the device is in handling different flow levels.

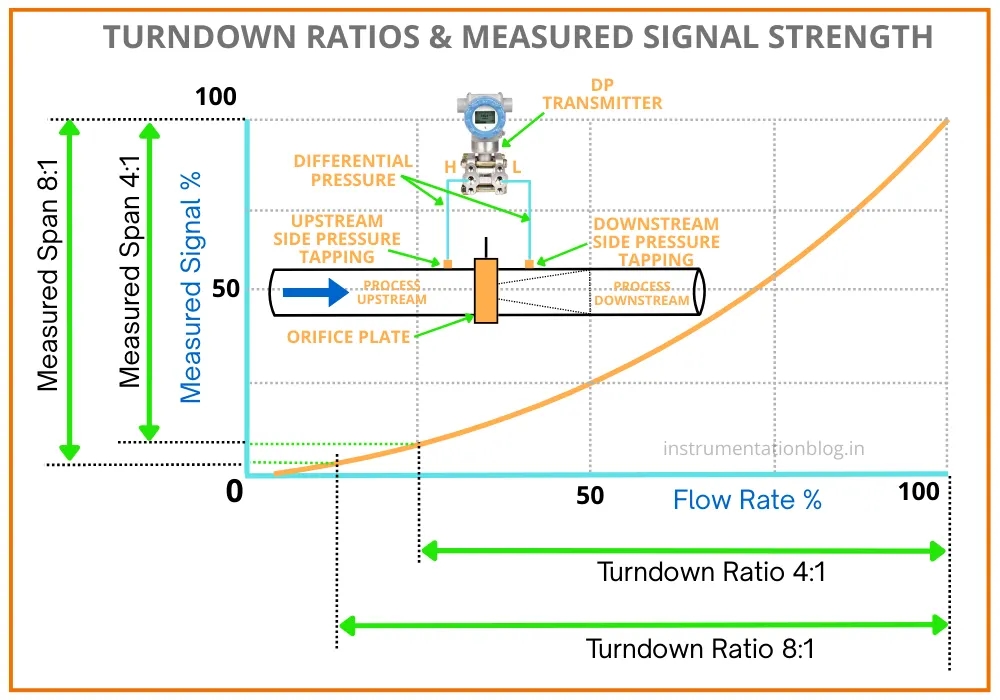

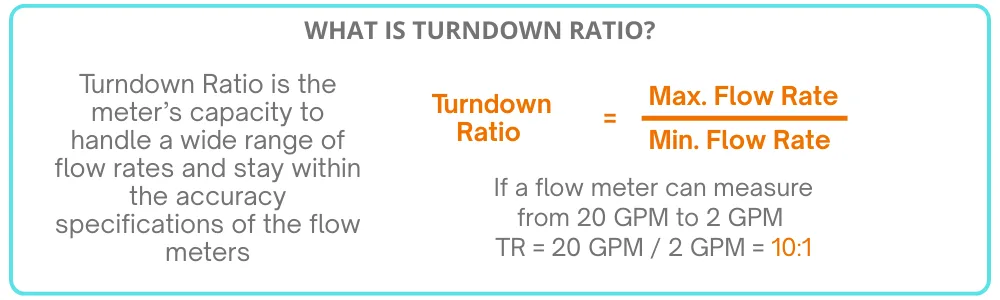

For Example:
If a flow meter can measure from 20 GPM to 2 GPM, then:
TR = 20 GPM / 2 GPM = 10:1
Why is Turndown Ratio Important?
The turndown ratio determines whether a flow meter can reliably capture low flows and peak flows in your process.
- Too narrow a range: You miss low-flow readings or get inaccurate data.
- Too wide without proper meter: You compromise measurement precision or sensor performance.
It is especially crucial in applications like gas distribution, steam flow, and varying process flows where the flow is not constant.
Suppose your gas flow varies from 100,000 m³/day to 1,000,000 m³/day.
- This application needs a flow meter with a minimum 10:1 turndown ratio.
- If your flow meter’s max range is 2,000,000 m³/day, then the required TR becomes 20:1 to maintain accuracy across the range.
A Simple Analogy – The Ruler
Imagine a 12-inch ruler marked every 0.25 inches. You can measure:
- Max = 12 inches
- Min = 0.25 inch
- TR = 12 / 0.25 = 48:1
But if the lower 2 inches are smudged:
- Min = 2 inches
- New TR = 12 / 2 = 6:1
This illustrates how losing visibility of the low end significantly reduces turndown ratio.
Factors Affecting Turndown Ratio
- Sensor Technology – Some sensors are better at low-flow detection.
- Signal-to-Noise Ratio (S/N) – If noise is high, low flow becomes undetectable.
- Fluid Dynamics – Some fluids or conditions (e.g., high viscosity or dirty liquids) reduce range.
Turndown Ratios of Common Flow Meter Types
| Flow Meter Type | Typical Turndown Ratio |
|---|---|
| Thermal Mass Flow Meter | 1000:1 |
| Ultrasonic (Multipath) | 50:1 |
| Rotary PD (e.g., Diaphragm) | 10:1 to 80:1 |
| Turbine Flow Meter | 10:1 |
| Orifice Plate | 3:1 |
Note: Actual turndown can vary based on design, manufacturer, and installation.
Summary
- Always match the meter’s turndown ratio to your application’s flow range.
- Higher turndown allows better accuracy at low flow rates.
- Signal quality and installation conditions affect performance.
- Don’t overlook turndown when selecting a meter—it’s vital for process reliability and cost-efficiency.
Track your actual process flow range and compare it with your meter’s specs before finalizing your purchase or installation.
